500W
Peak Moter
-
22 MPH
Top Speed
-
60Miles
Max Range
-
36V 10.4Ah
Powerful Battery
-
26" *1.95"
Pneumatic Tires
-
330 LBS
Load Capacity

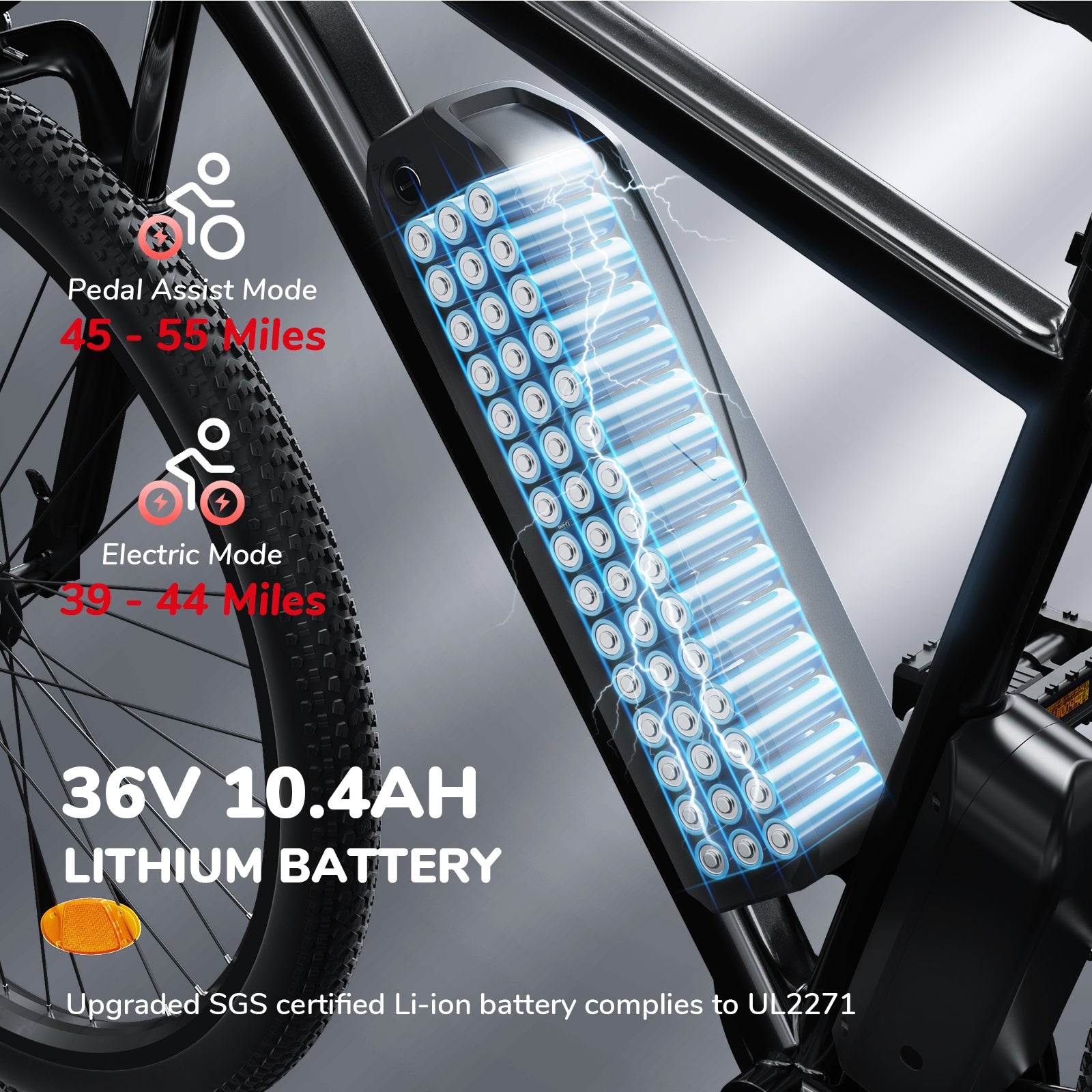

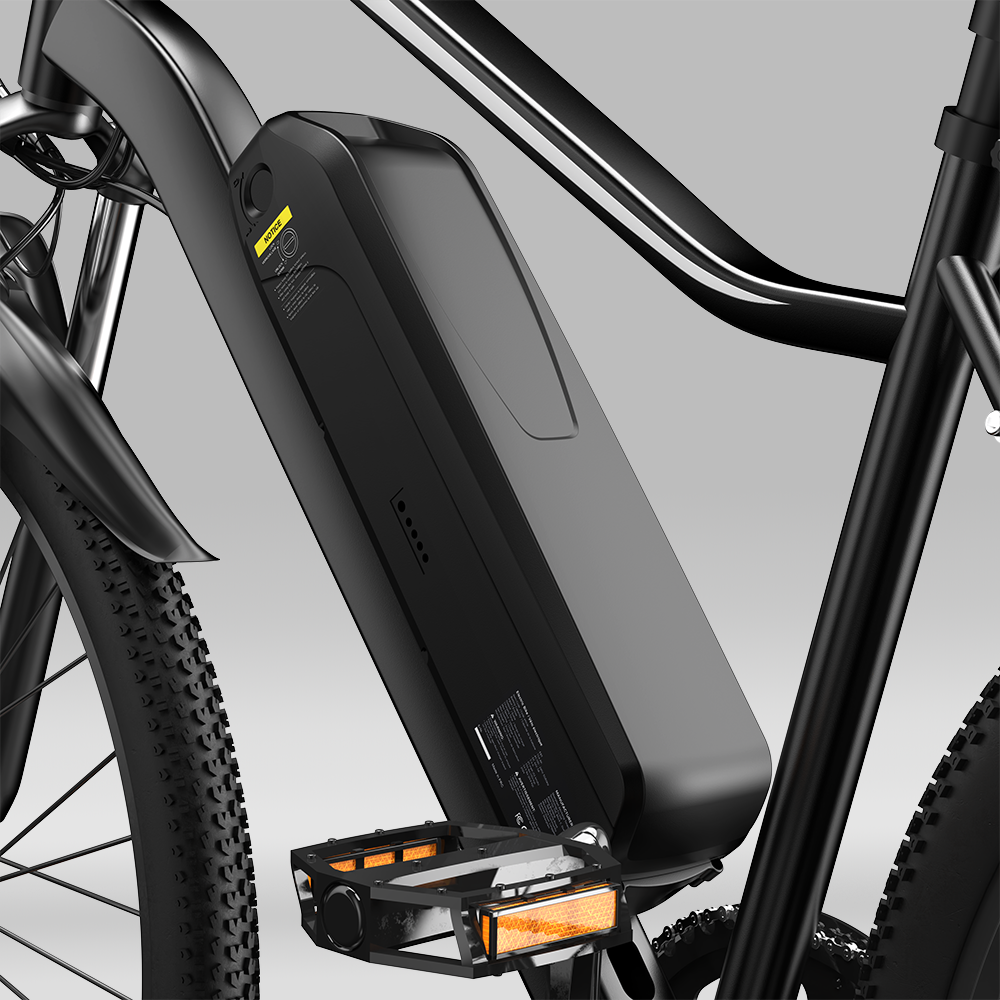

Featuring a CE-certified 36V 10.4Ah lithium-ion battery with an IP65 waterproof rating, the system offers outstanding safety and durability. Its removable design makes charging convenient, and the high capacity supports longer, worry-free journeys.

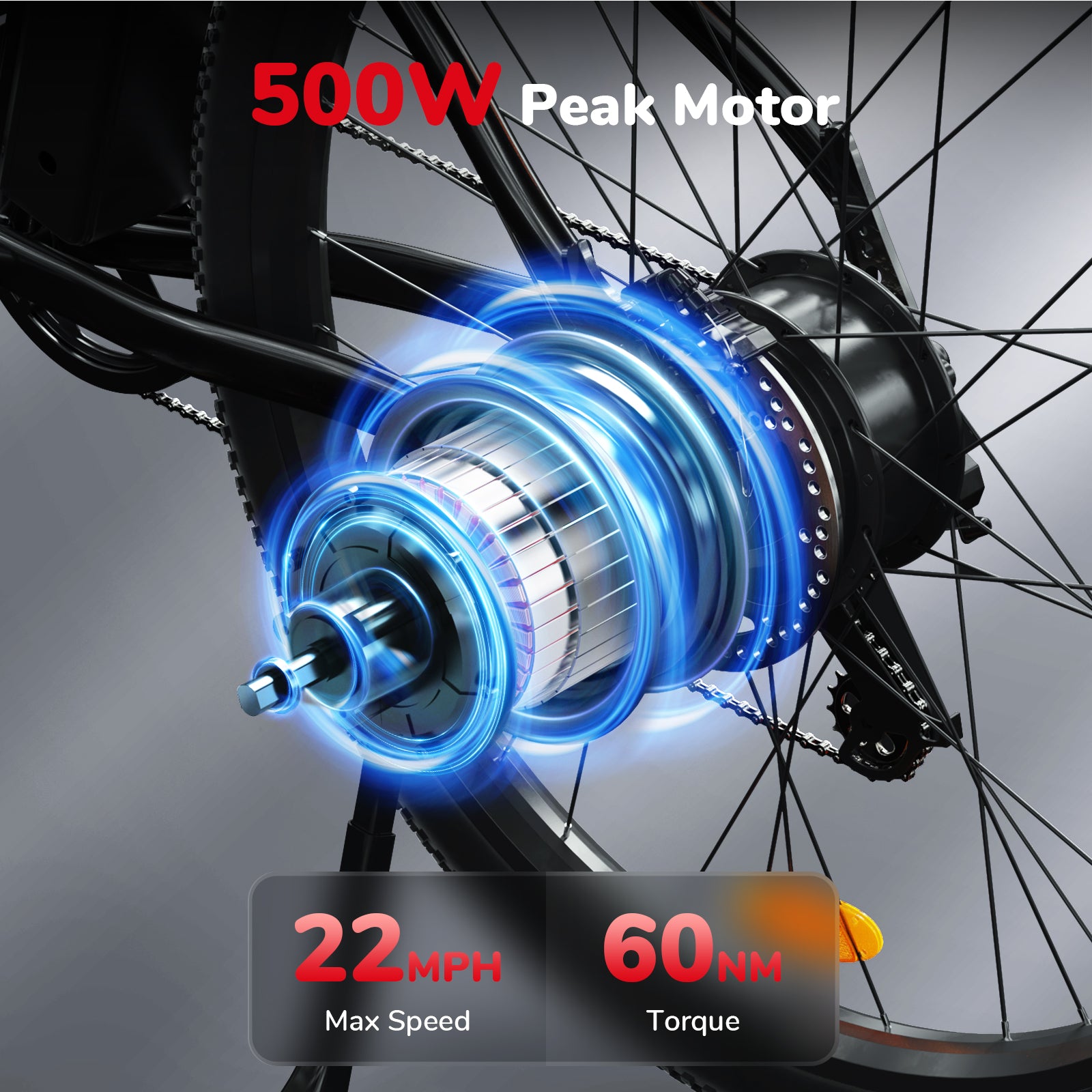

The geared hub motor offers enhanced torque for effortless starts and hill climbs, delivering quiet, smooth, and responsive acceleration for a more enjoyable ride.

Choose a feature to explore further.

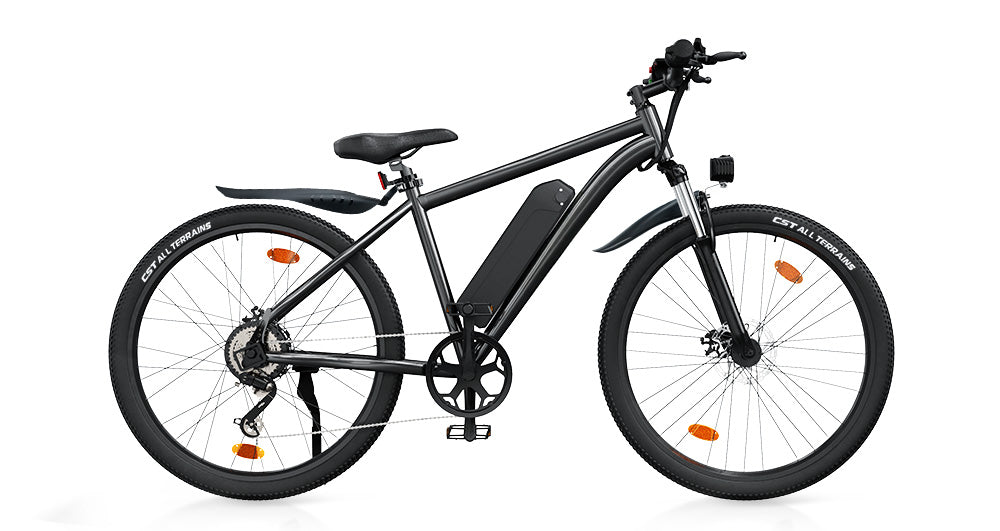

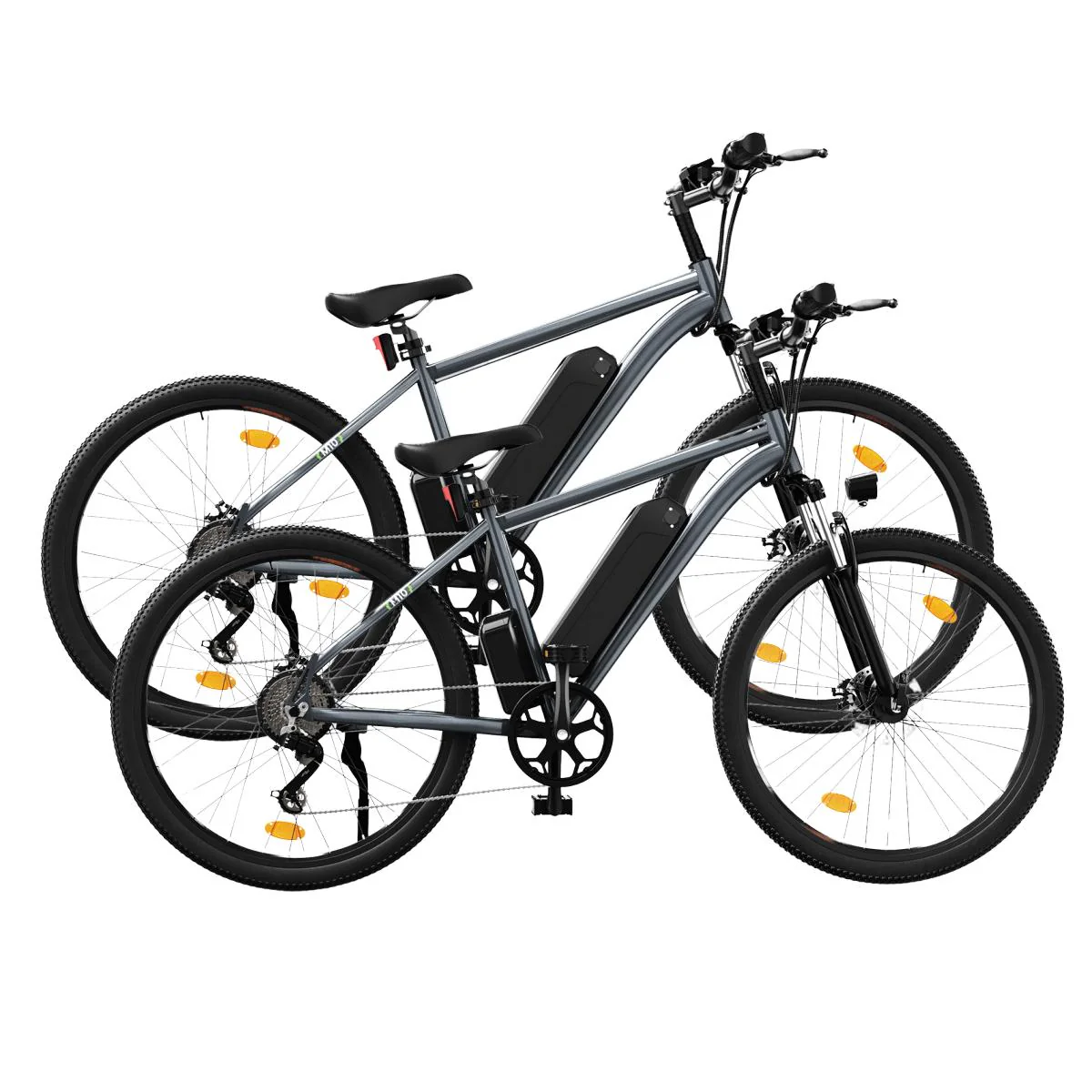

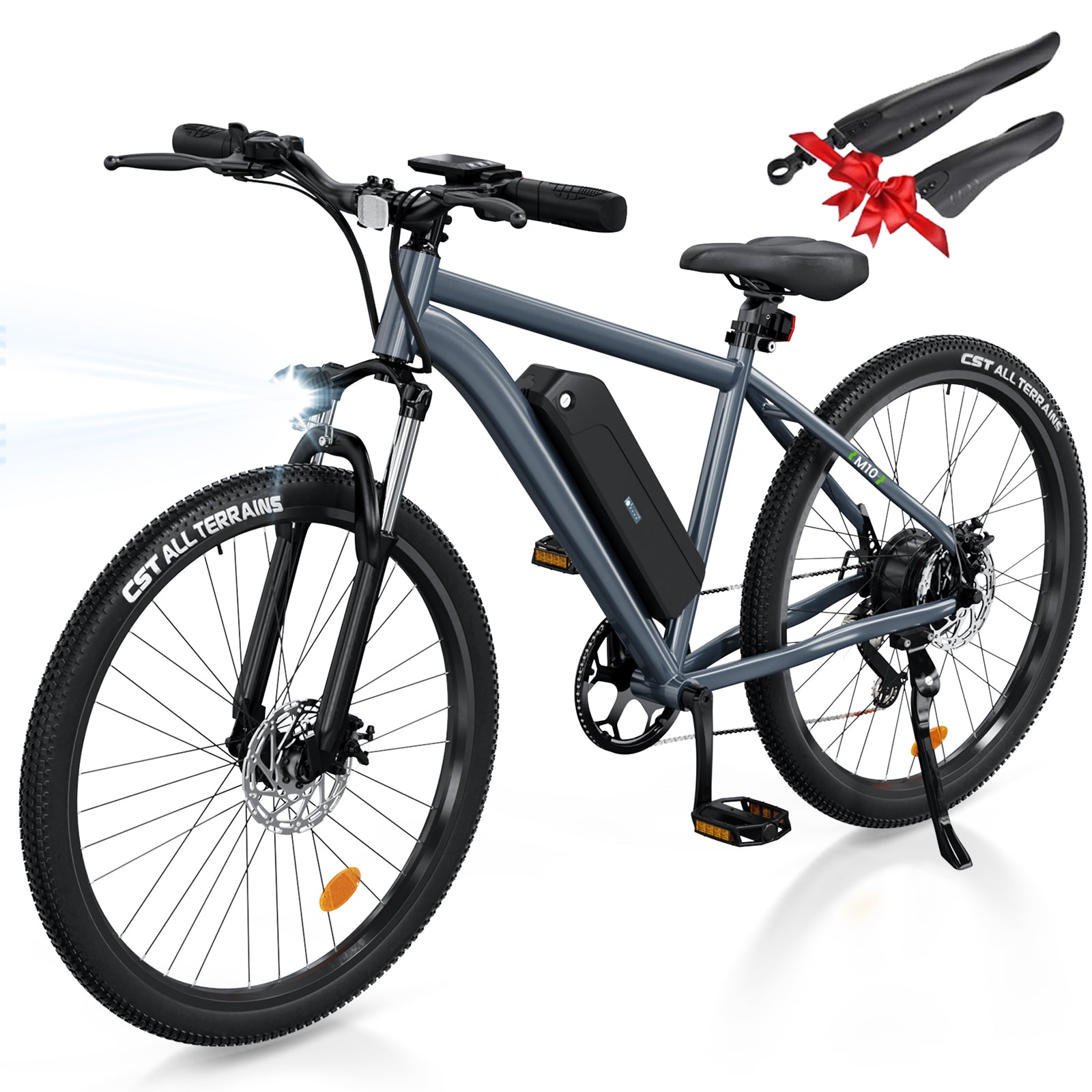

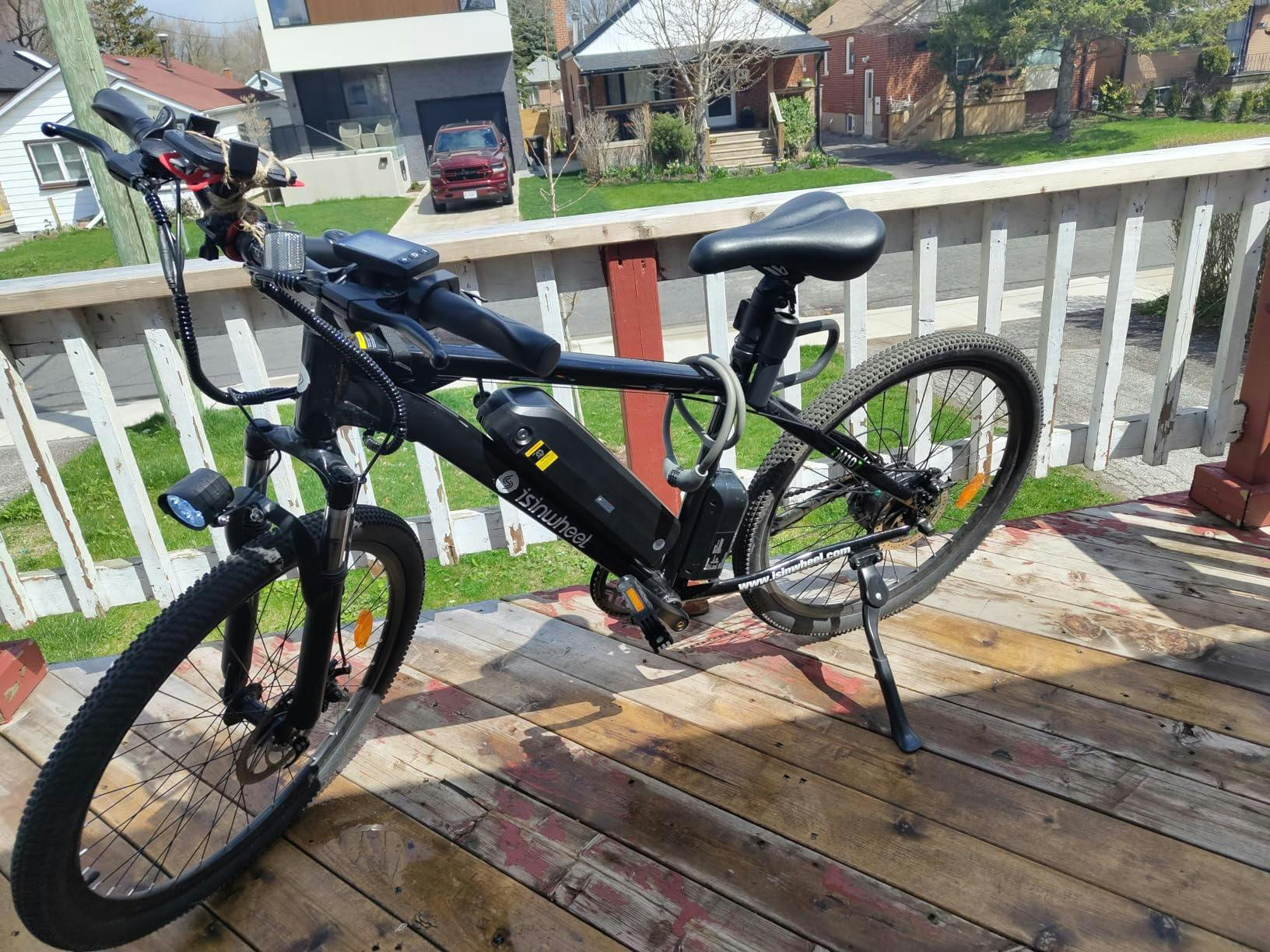

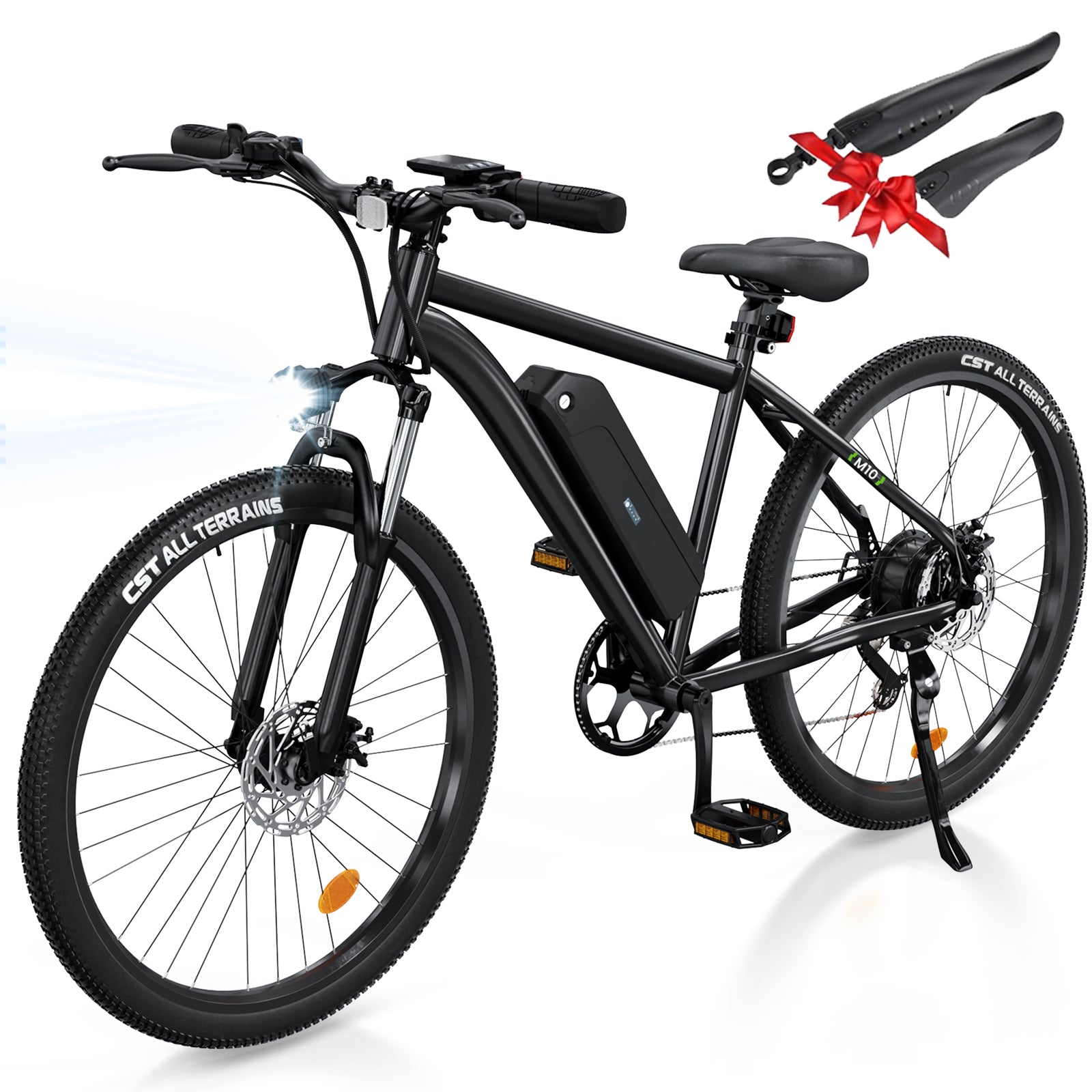

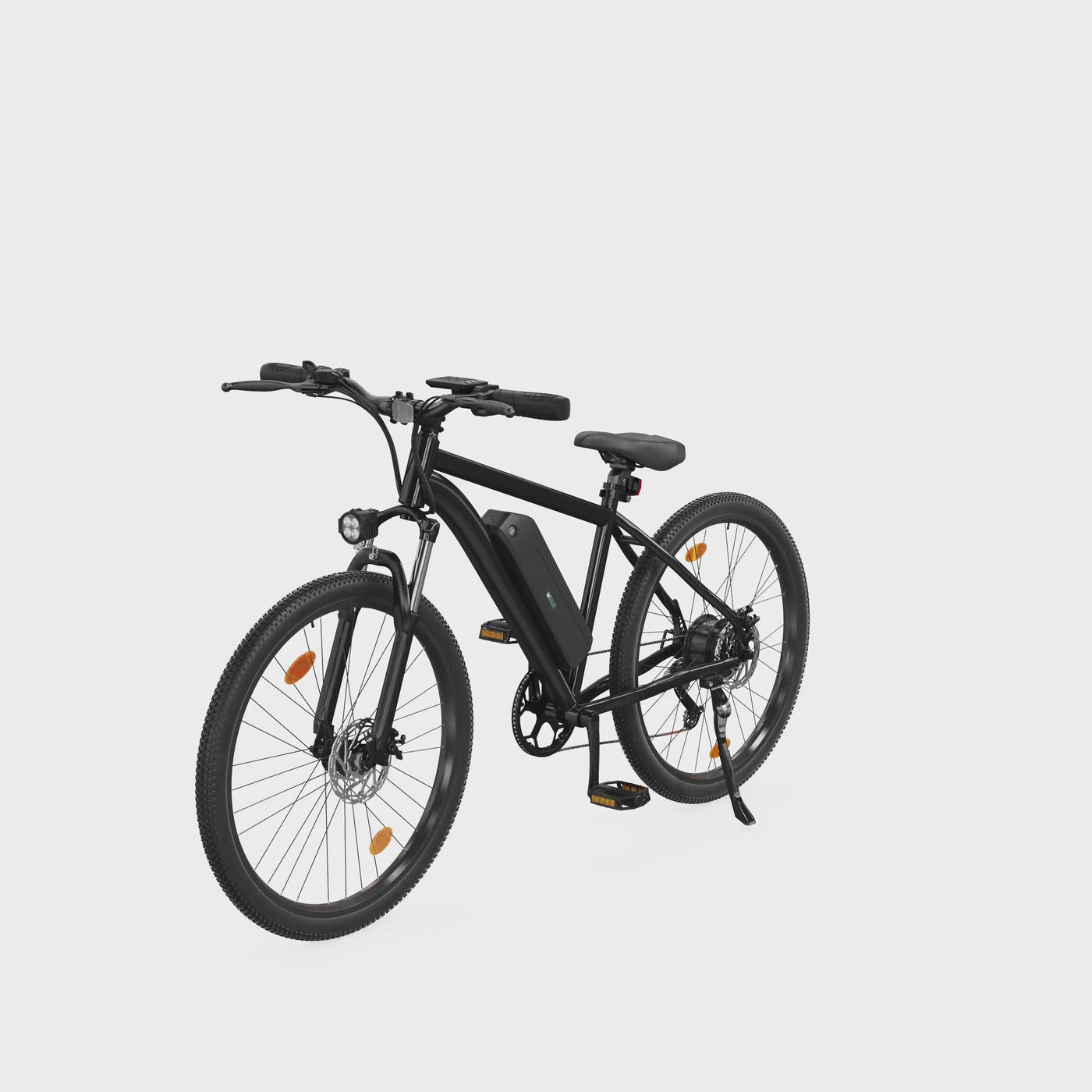

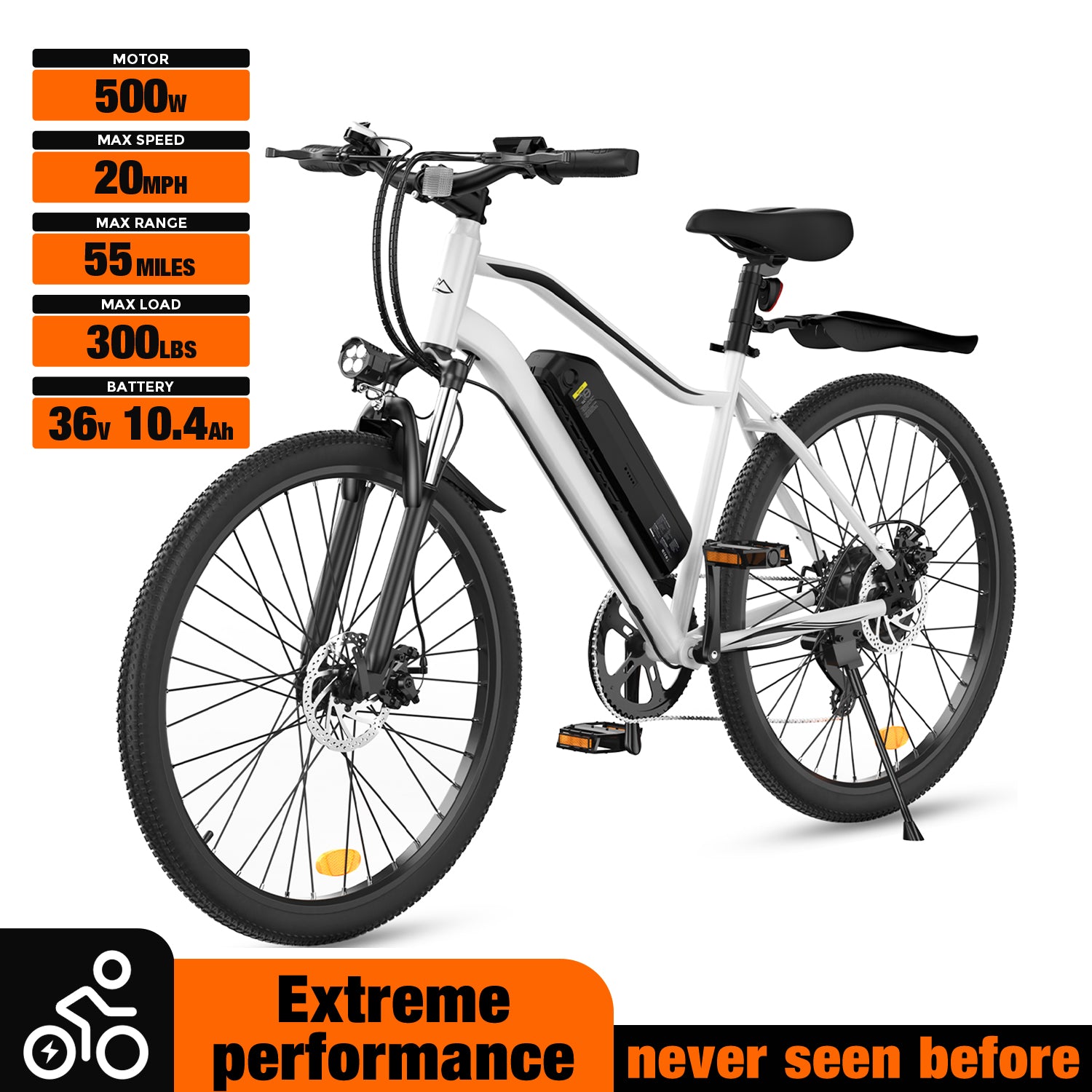

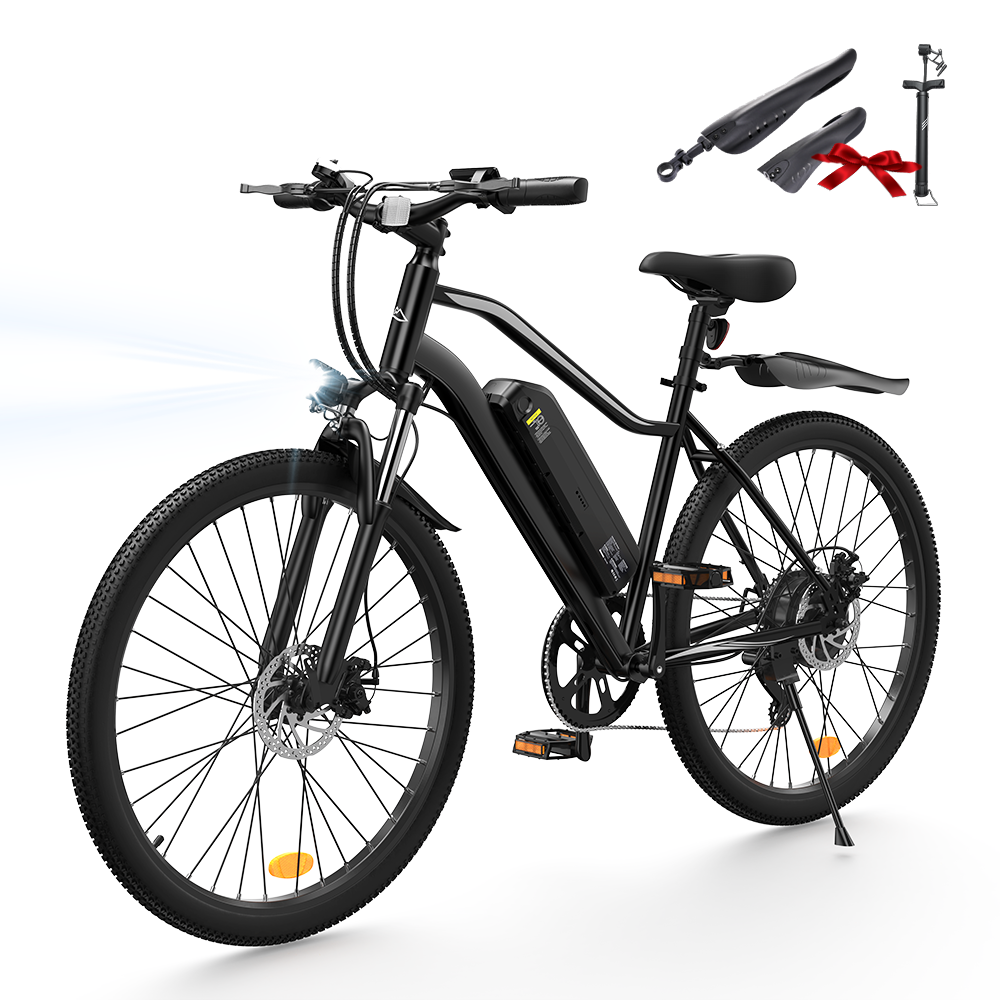

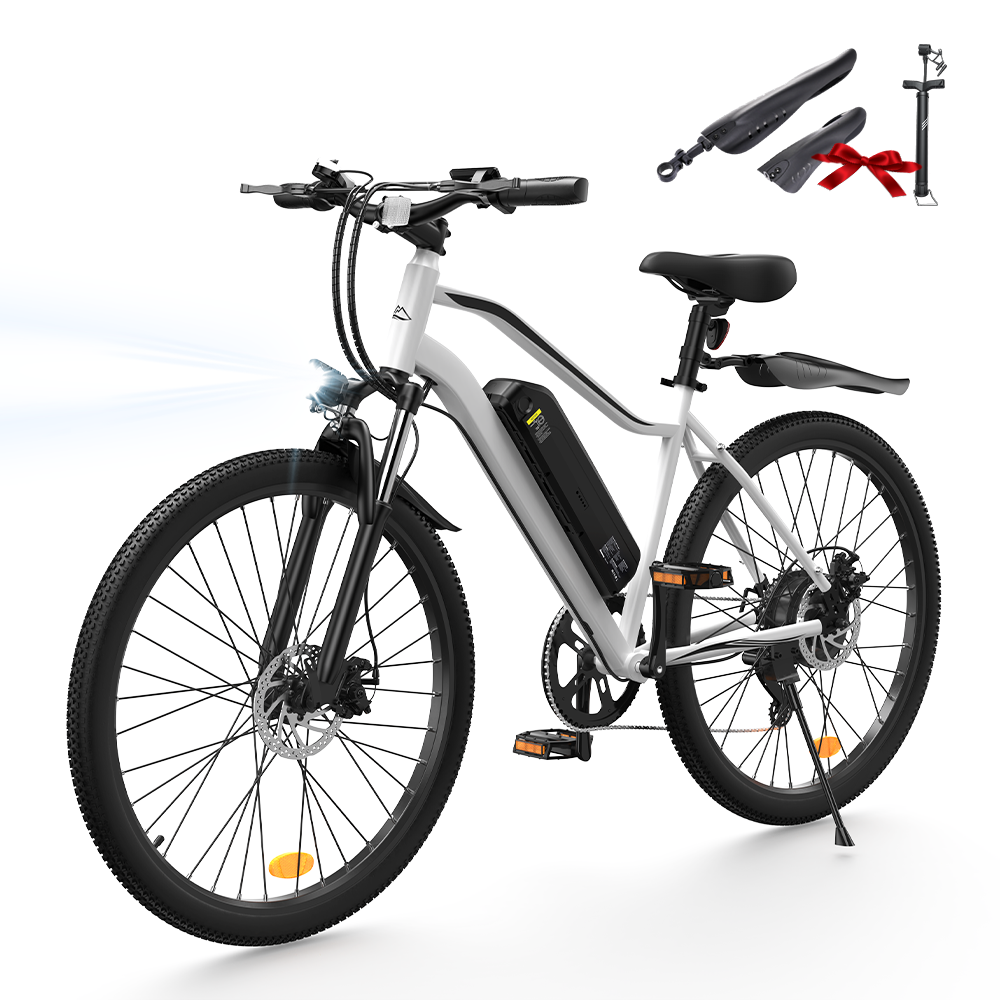

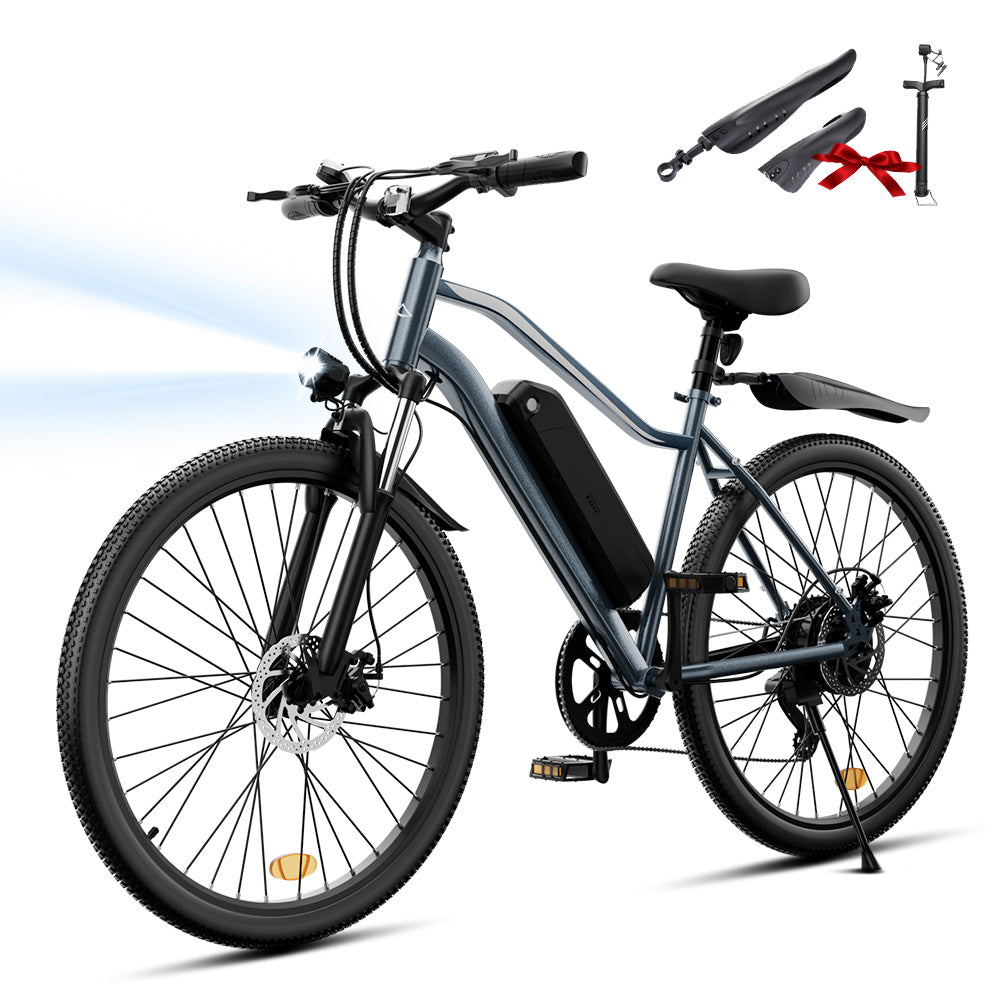

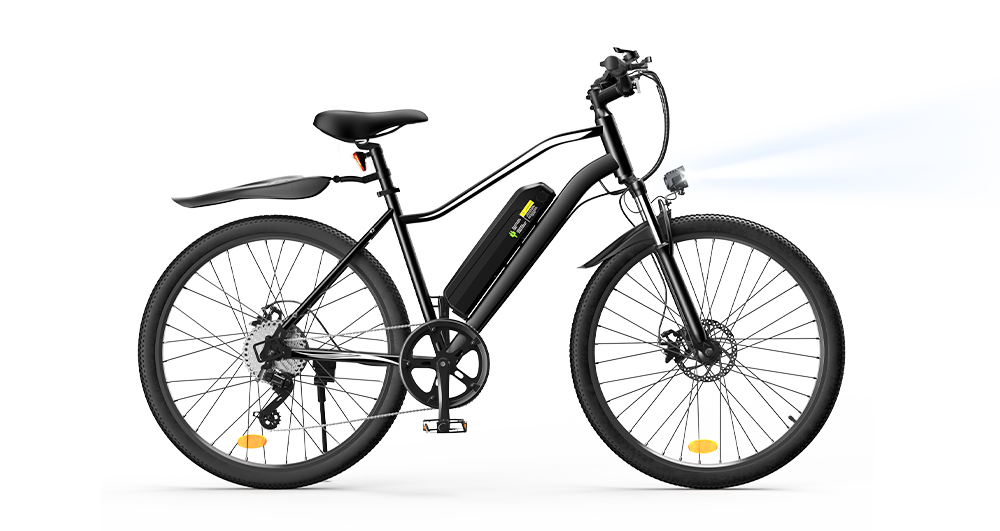

M10 Electric Bike

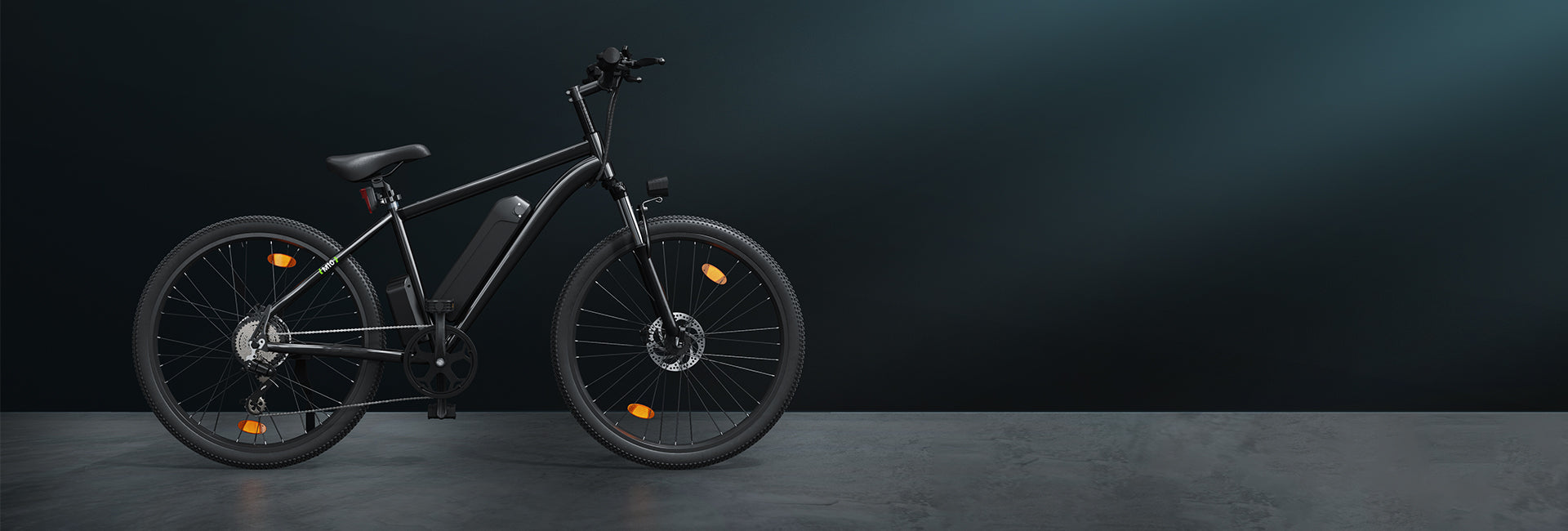

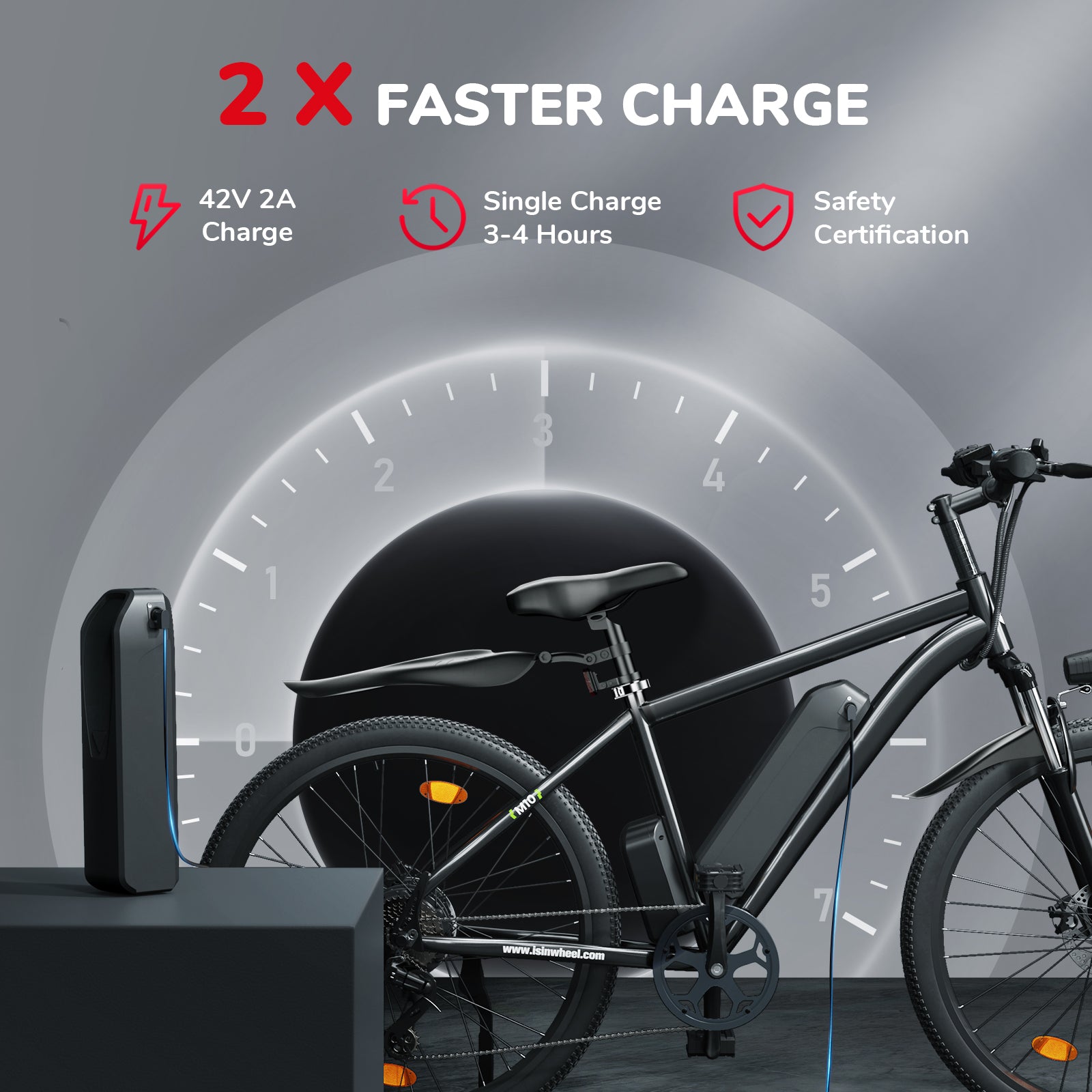

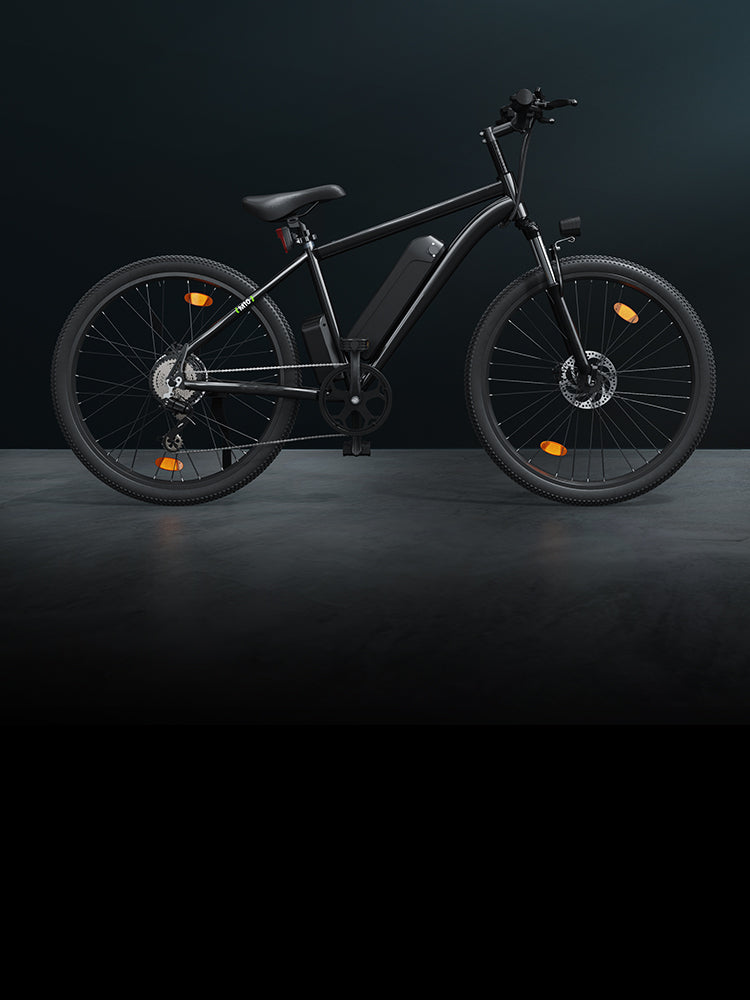

The M10 offers 3 riding modes to suit various cycling needs. Its step-through frame and removable battery make mounting and charging easy. Fast charging saves time and is eco-friendly.
Key Features
Motor
500W (Rated 250W)
Battery
378 Wh (36V, 10.5Ah) lithium battery.
Max Load
330 lbs (150 kg)
Range
44-60 Miles (70-100 km)
Speed
Before Unlocking: 3.7/6.2/9.3/12.4/15.5 MPH (6/10/15/20/25 KM/H)
After Unlocking: 6.2/9.3/12.4/15.5/22 MPH (10/15/20/25/35 KM/H)
Tires
26" *1.95" Pneumatic Tires

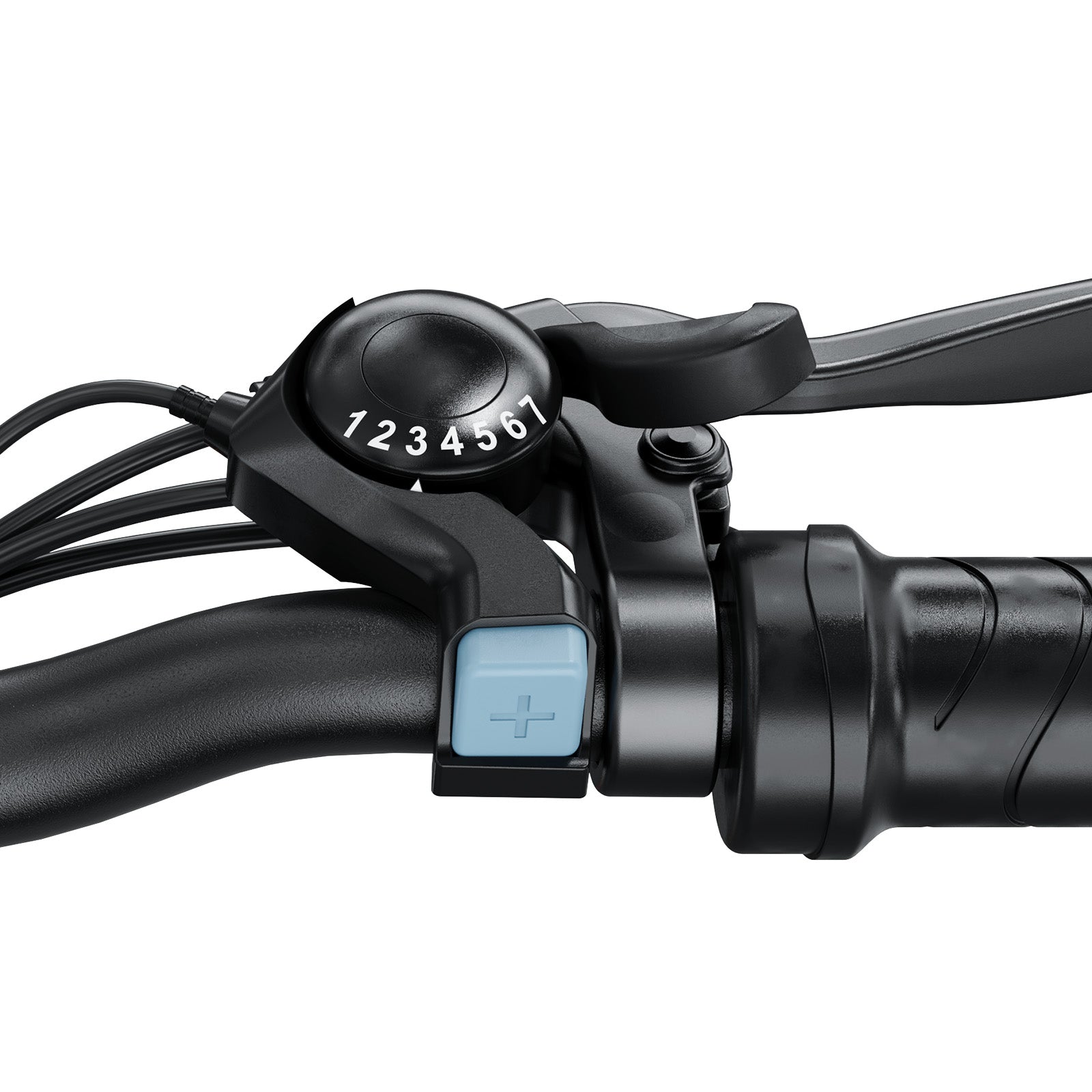

Pedal Assist
7 Levels
Warranty
24 Months
Electronics

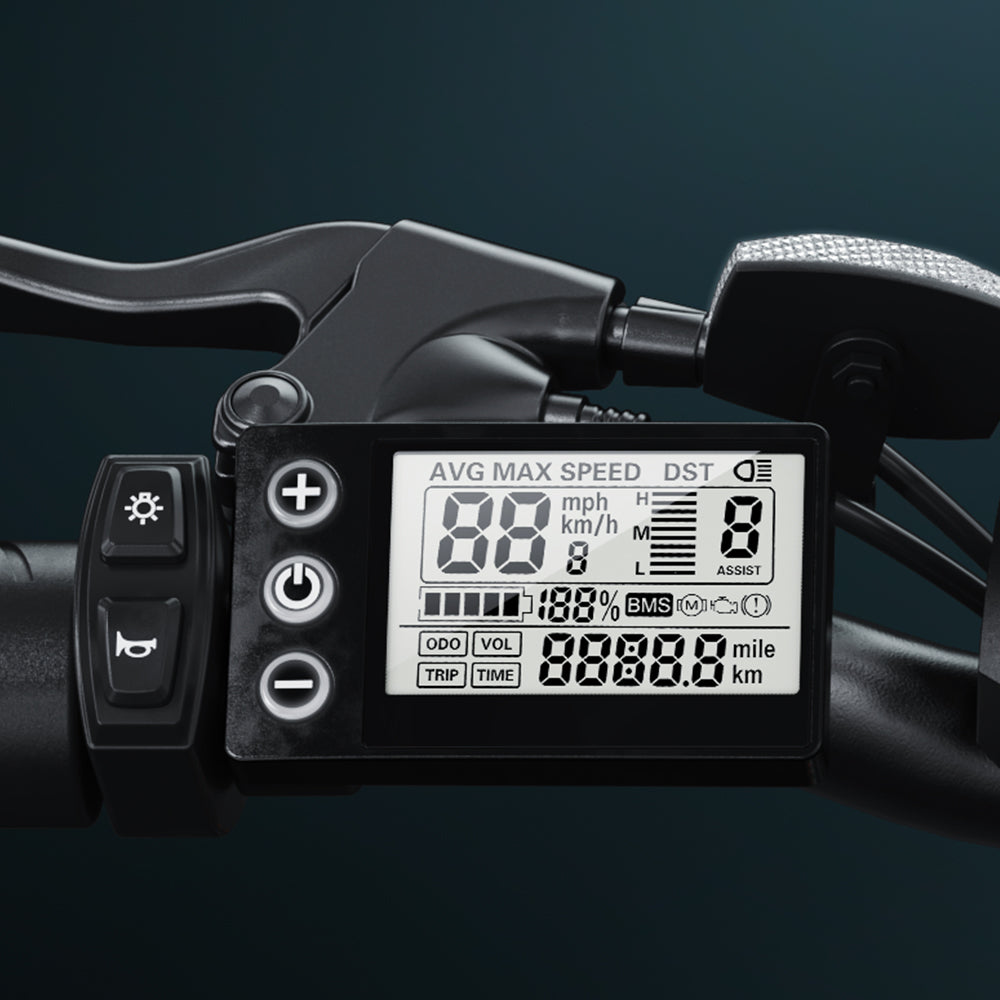

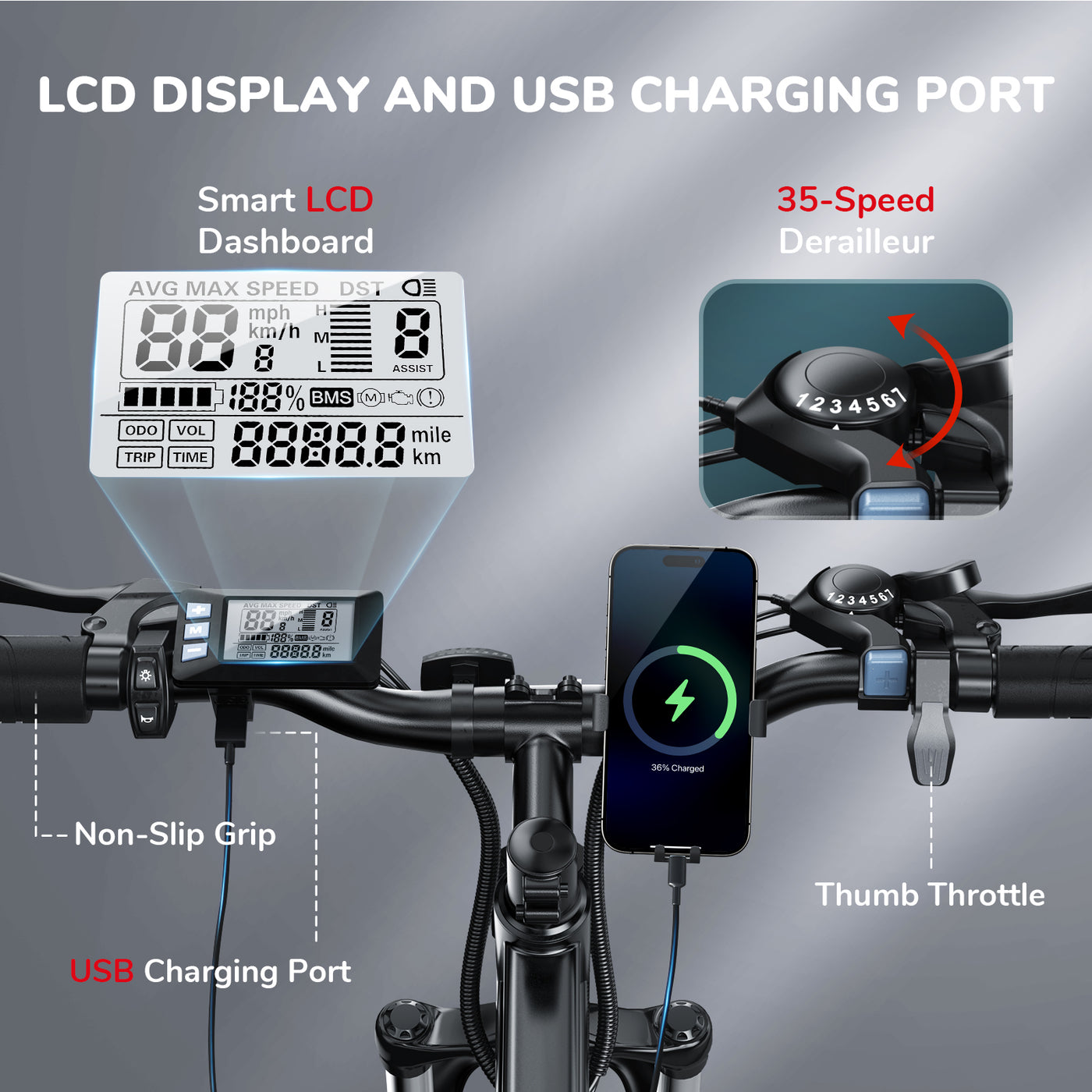

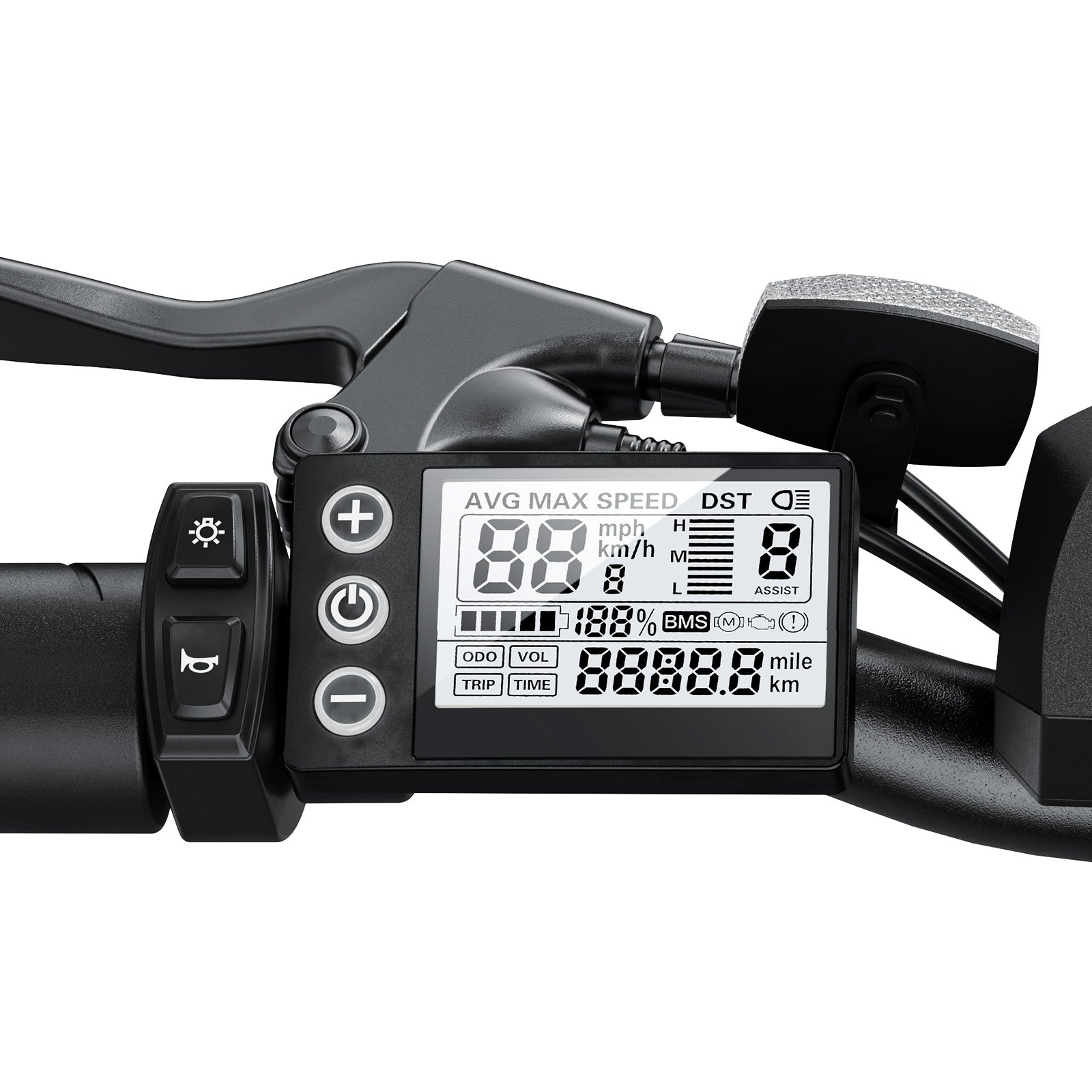

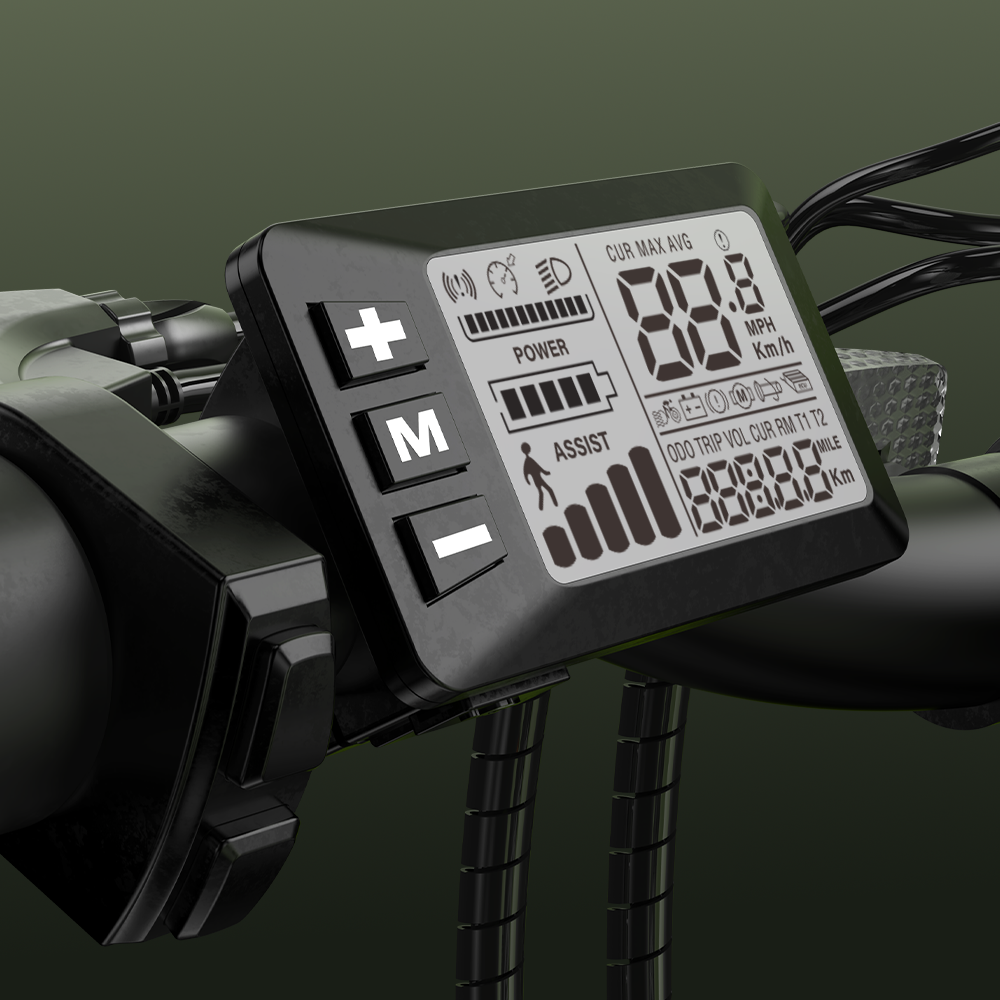

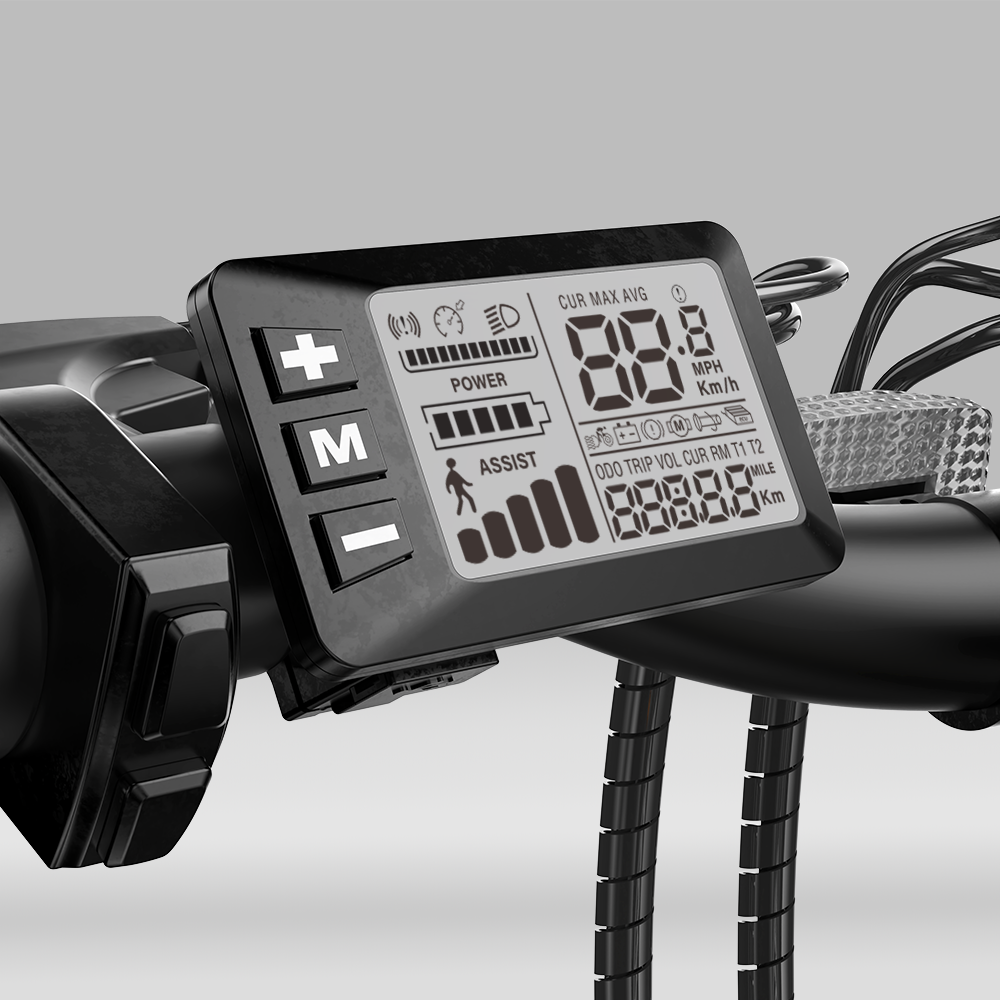

Display
8.4*5cm LCD display
Controller
36V, max output 15 amp
Waterproof
IP65 (included)
Sensor
Cadence Sensor
Performance
Top Speed
22 mph (35 km/h)
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Range
37-47 miles / 60-75 km (in pure electric mode)
46-60 miles / 75-100 km (in pedal assist mode--PAS mode)
*Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Climbing Ability
Suitable for moderate urban slopes
*The actual performance would depend on the rider's physical strength.
Component

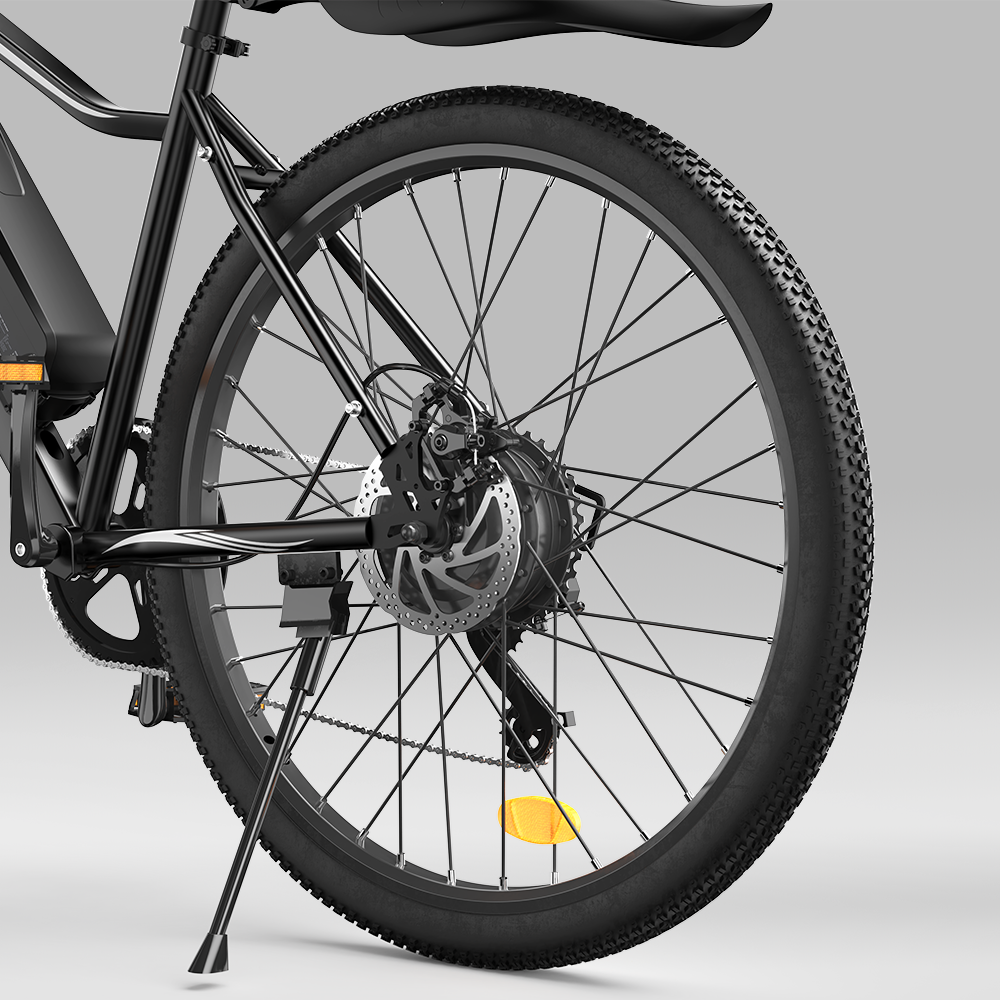

Tires
26*1.95" pneumatic tires
Frame
Alloy steel frame

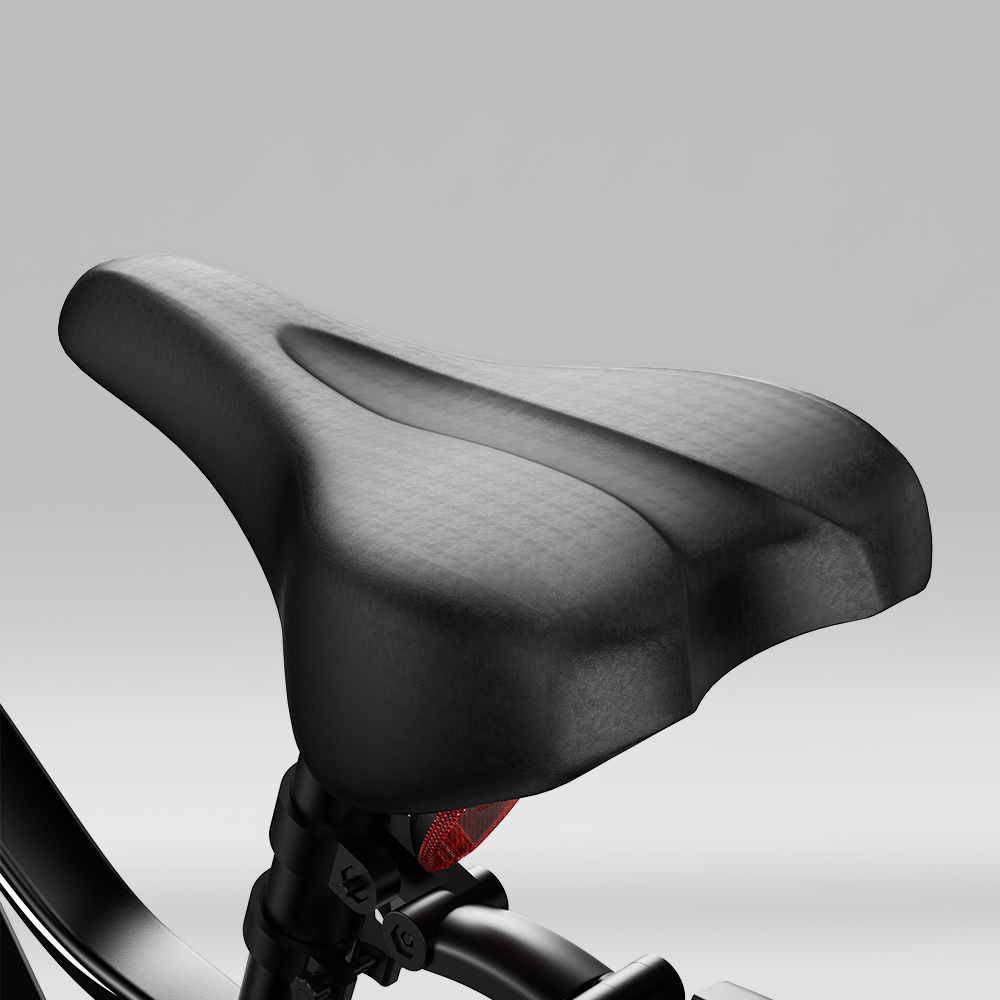

Saddle
Breathable ergonomic sport cushion seat
Seat Post
Adjustable height
Net Weight
54.67 lbs (24.8 kg)

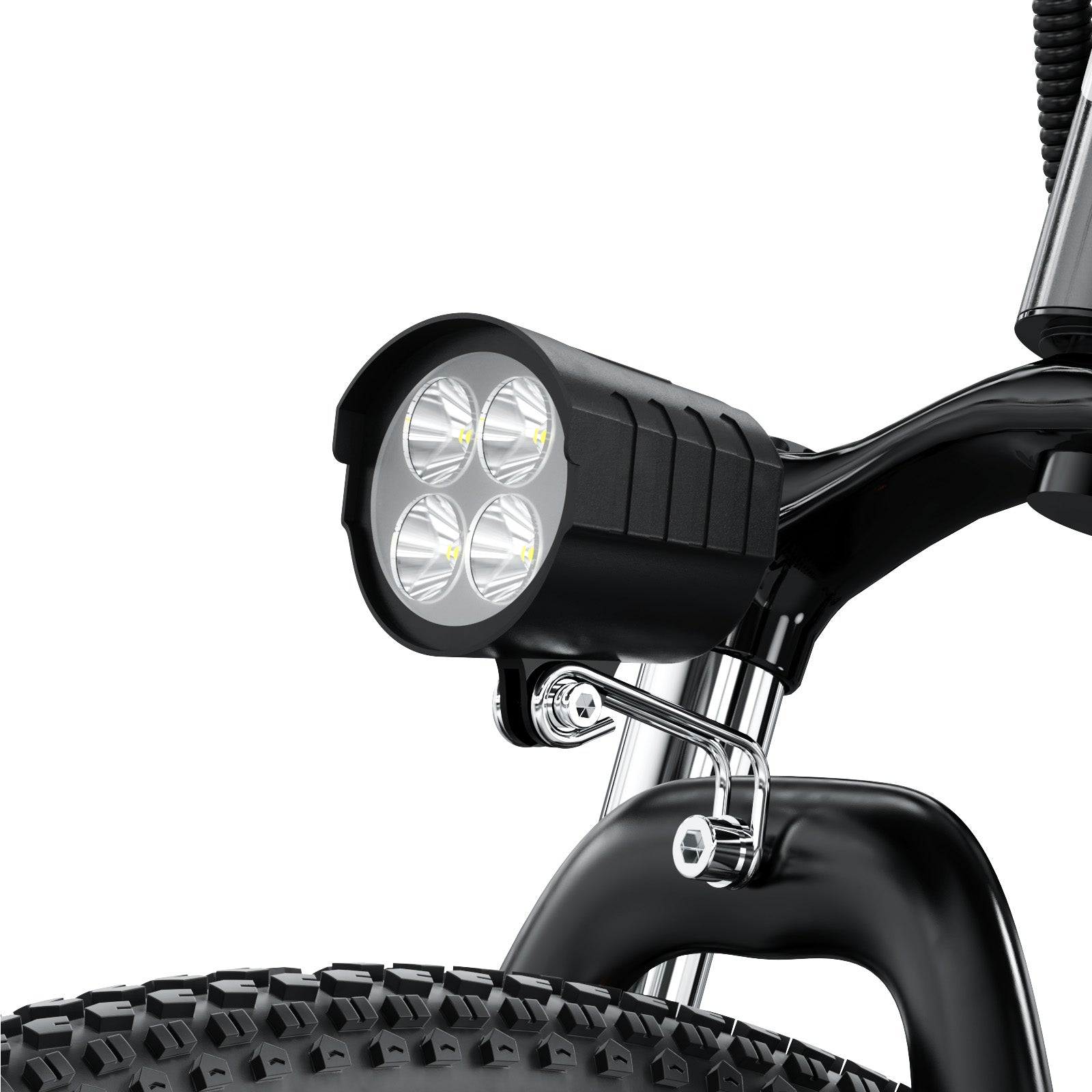

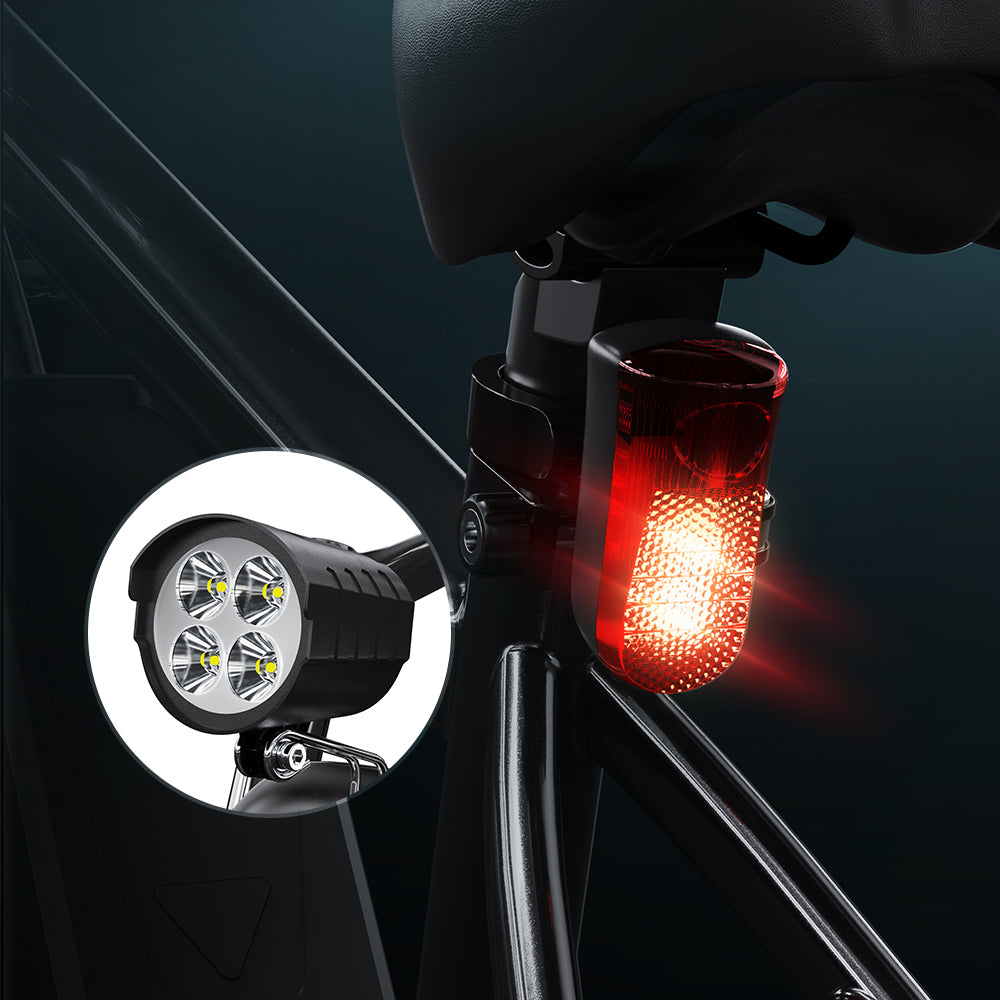

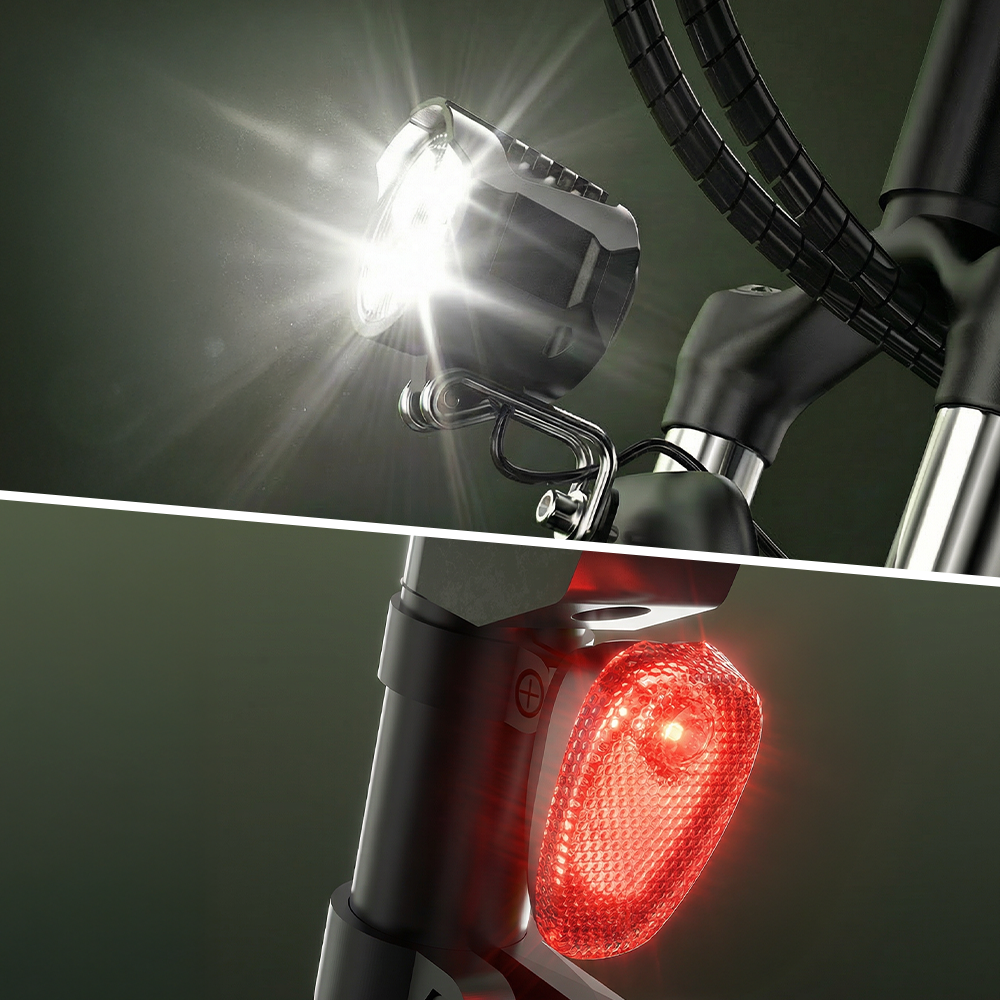

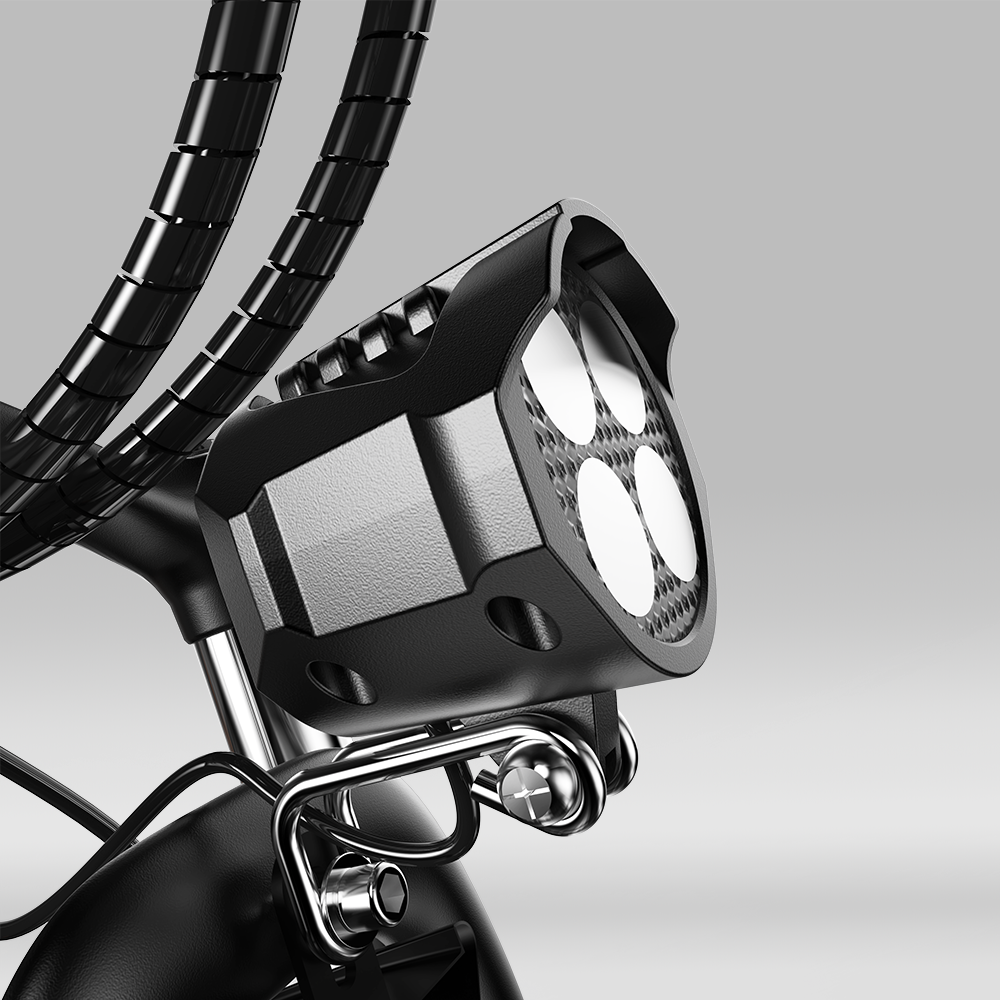

Front Light
111 lumen LED

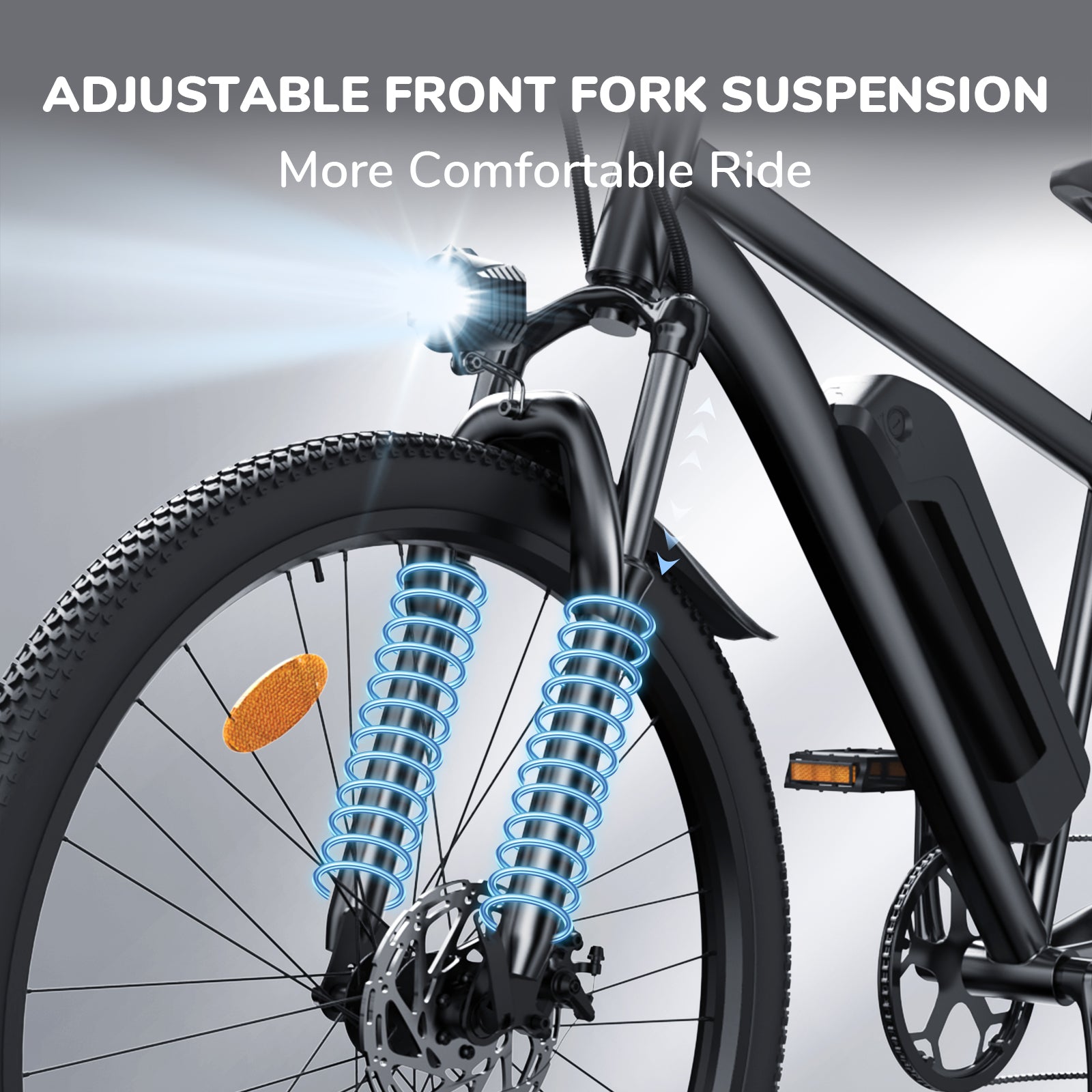

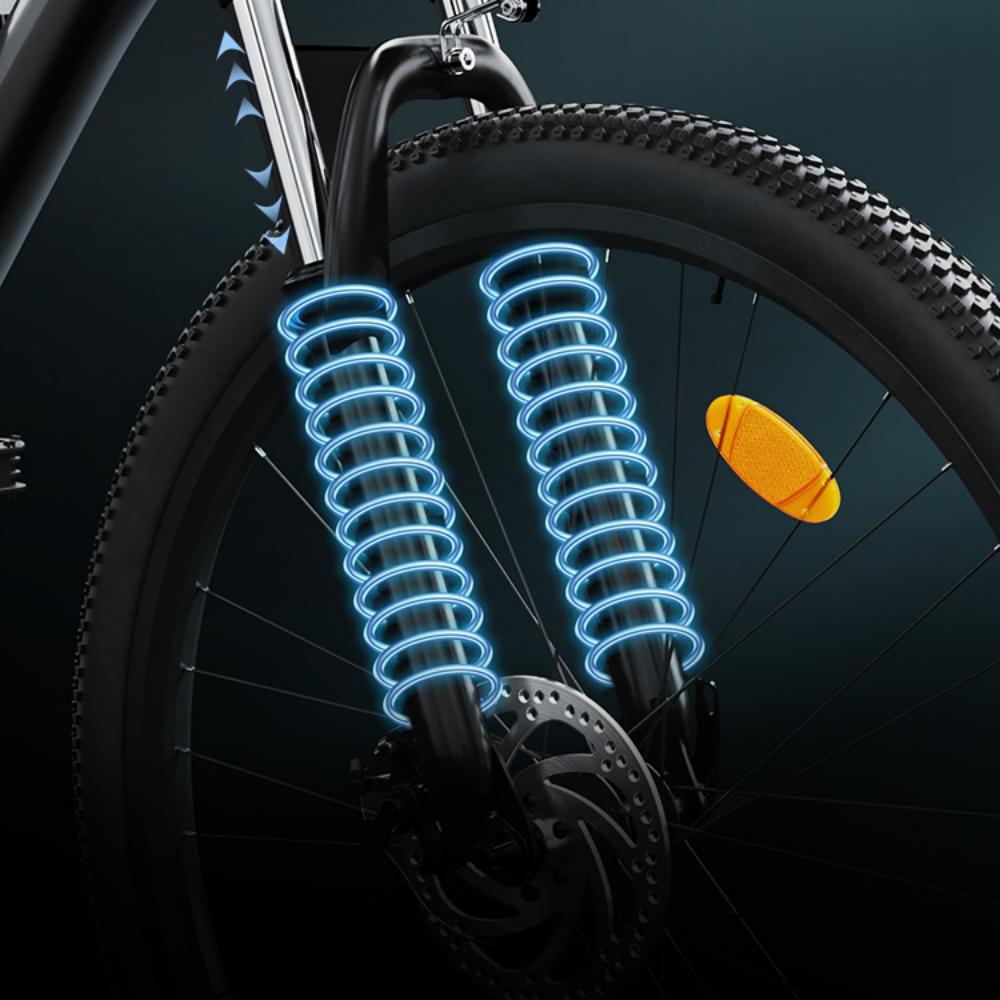

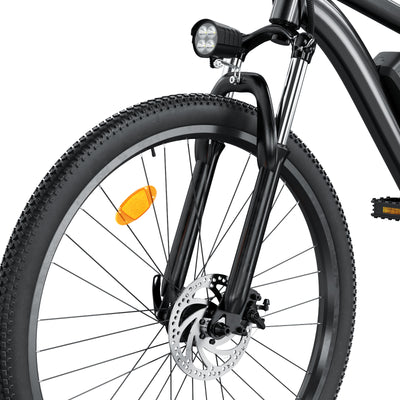

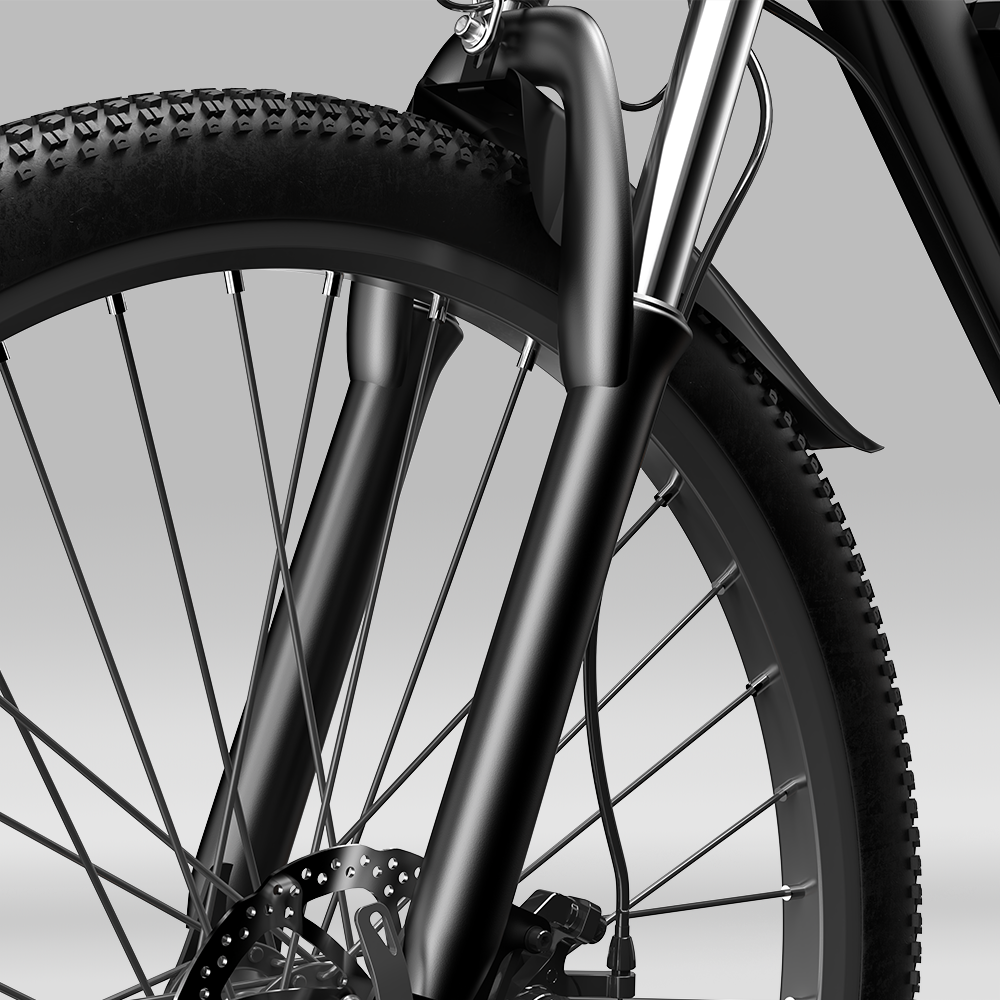

Front Fork
6061 Aluminium Front Fork

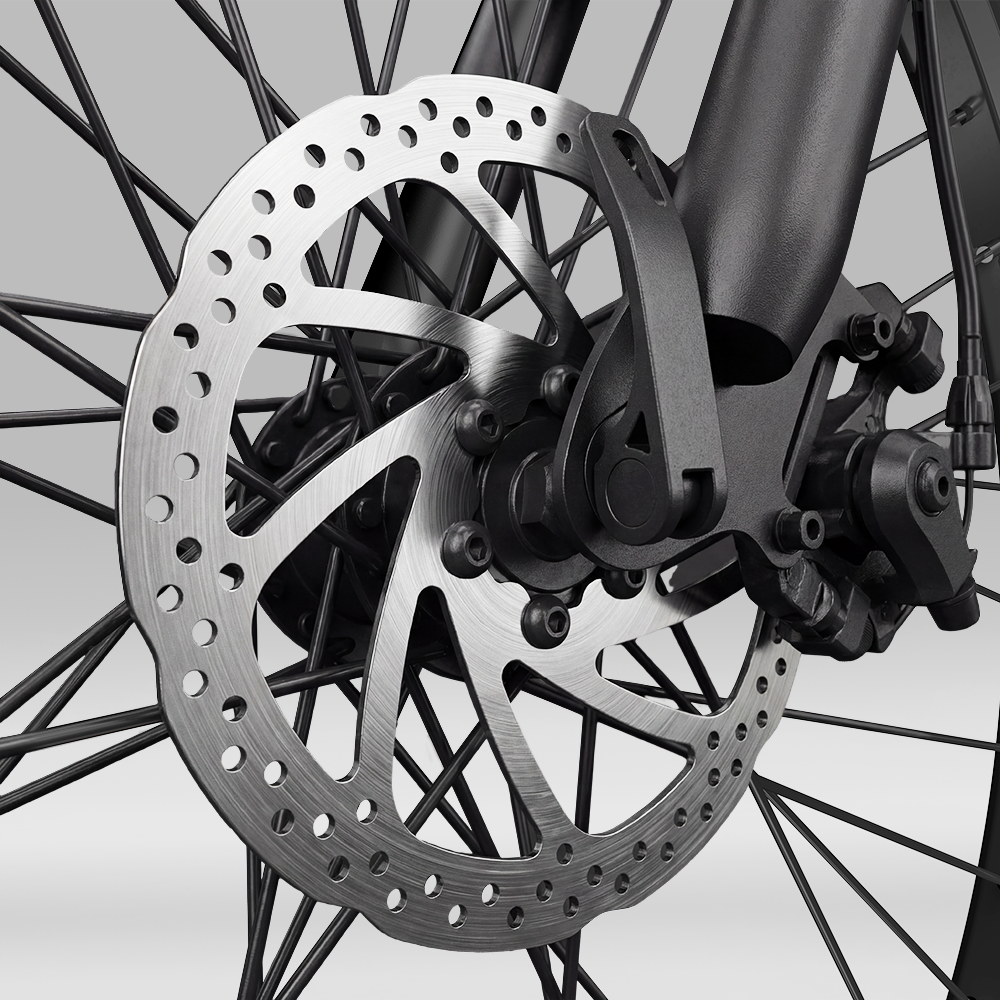

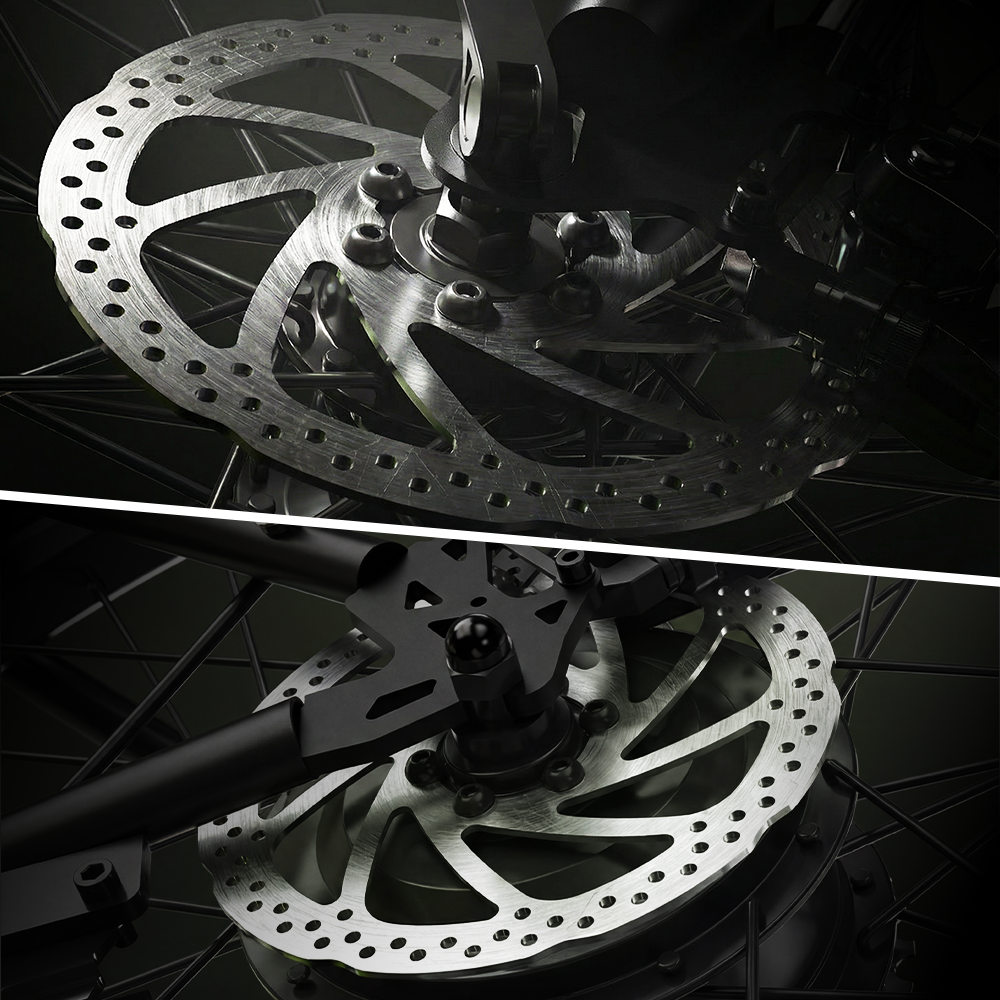

Brake
Mechanical brake

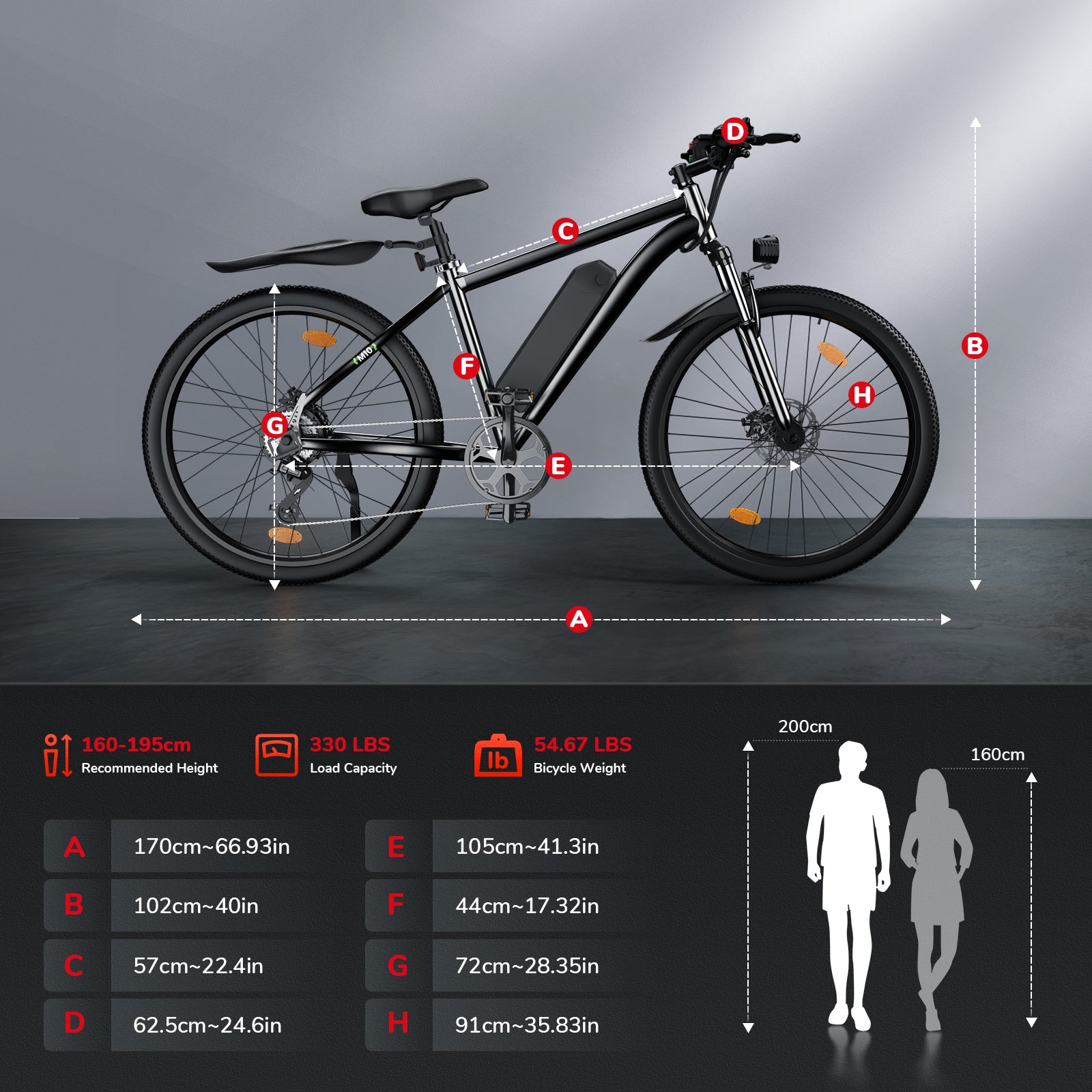

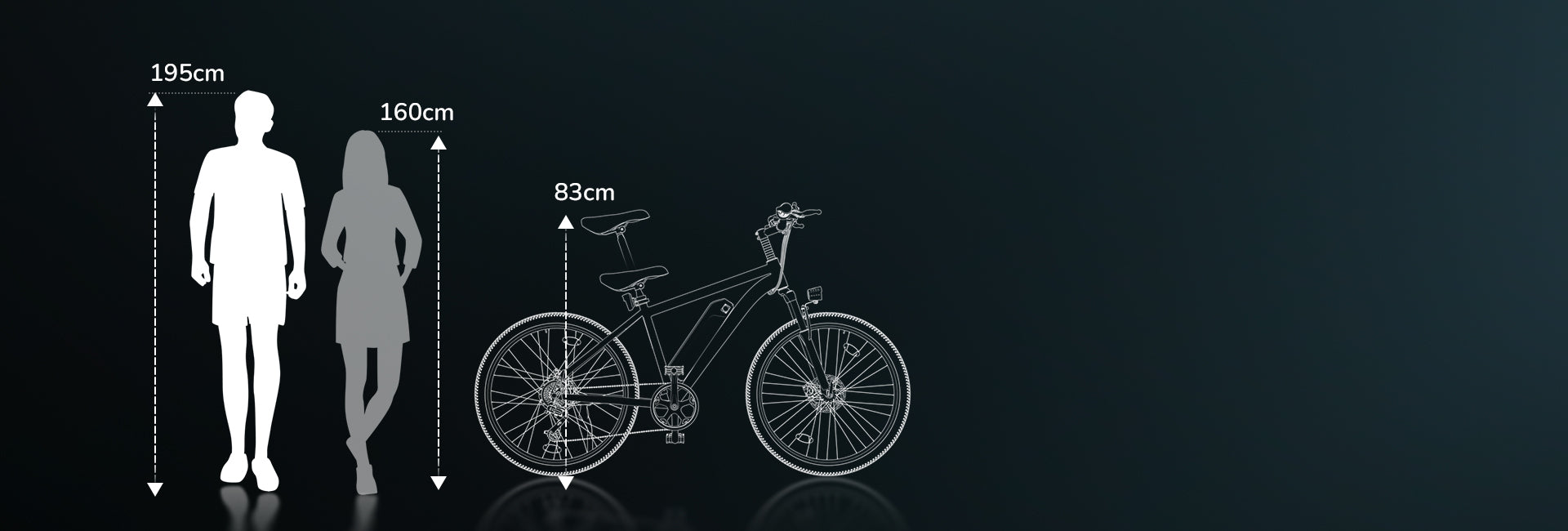

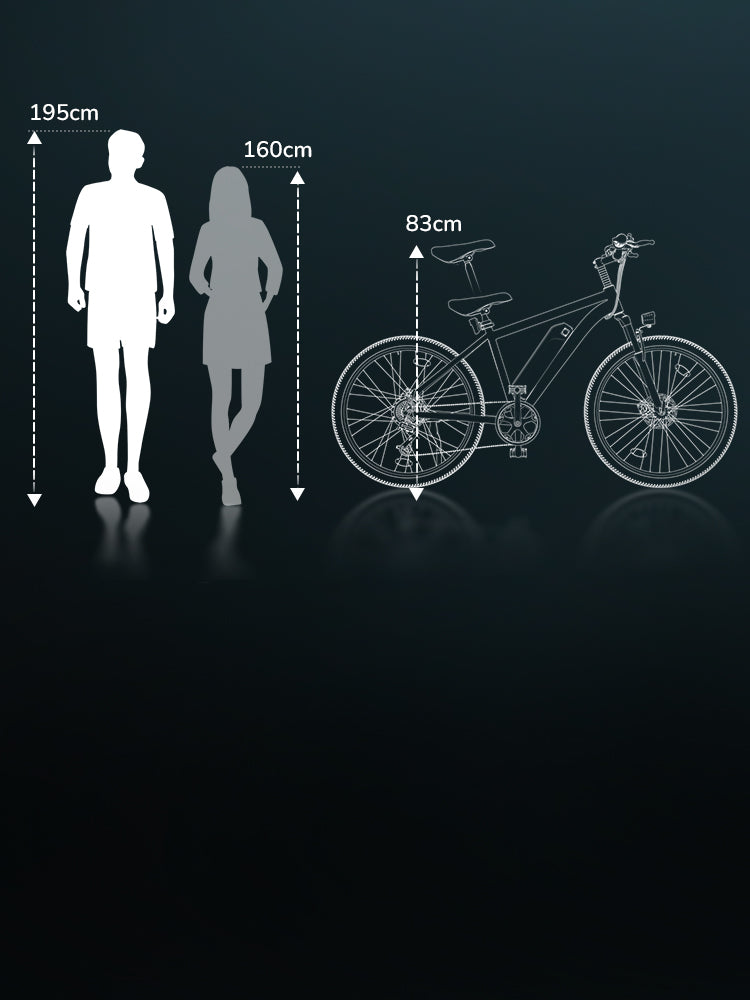

Product Dimensions
70.8 x 25.6 x 45.3in / 180 x 65 x 115cm
Please note: Manual measurements may result in a minor deviation of 1–3 cm.
Package Dimensions
56.7 x 9.6 x 25.8in / 144 x 24.5 x 65.5cm
Please note: Manual measurements may result in a minor deviation of 1–3 cm.
